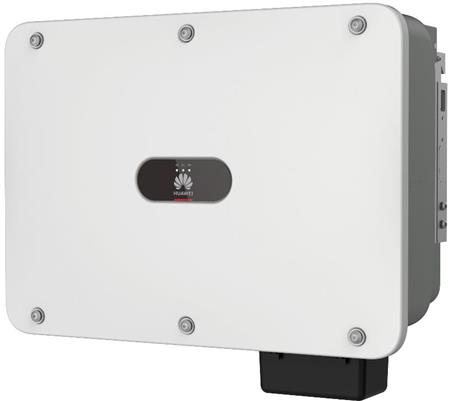

HUAWEI SUN2000-50KTL-M3 INVERTER 4MPPT

Huawei SUN2000-50KTL-M3 3-faset Smart String Inverter, nominel effekt på 50,0kW. 4 MPP tracker. - Dongle er tilkøb, 5 års garanti, mulighed for IntelliCharge AI-integration. IntelliCharge.AI optimerer automatisk ladeplaner baseret på data fra energipriser, tariffer, vejr, forbrug og hardware information i realtid. Slutkunder kan bestille licenser direkte hos IntelliCharge.AI og straks få adgang til intelligent energistyring. Bestilling af IntelliCharge AI: Måneds- og årslicenser til Huawei Inverter Bestilling af IntelliCharge AI: 10-års licens til Huawei Inverter SUN2000-50KTL-M3 Technical Specifications Input : Max. Input Voltage 1100 V Max. Current per MPPT 30 A Max. Current per Input 20 A Max. Short Circuit Current per MPPT 40 A Start Voltage 200 V MPPT Operating Voltage Range 200 V ~ 1,000 V Rated Input Voltage 600 V Number of Inputs 8 Number of MPP Trackers 4 Output : Rated AC Active Power 50,000 W Max. AC Apparent Power 55,000 VA Max. AC Active Power (cosf=1) 55,000 W Rated Output Voltage 400 Vac / 480 Vac, 3W+(N) + PE Rated AC Grid Frequency 50 Hz / 60 Hz Rated Output Current 72.2 A @ 400Vac, 60.1 A @ 480Vac Max. Output Current 79.8 A @ 400Vac, 66.5 A @ 480Vac Communication : Display : LED Indicators, Bluetooth + APP RS485 : Yes Smart Dongle : WLAN/Ethernet via Smart Dongle-WLAN-FE (Tilkøb) Smart Dongle : 4G / 3G / 2G via Smart Dongle-4G (Tilkøb) Monitoring BUS (MBUS) : Yes (Isolation Transformer required) General : Dimensions (W x H x D) 640 x 530 x 270 mm Weight (with mounting plate) 49 kg Operating Temperature Range -25°C ~ 60°C Cooling Method Smart Air Cooling Max. Operating Altitude 4,000 m Relative Humidity 0% RH ~ 100% RH DC Connector Amphenol HH4 AC Connector Waterproof Connector + OT/DT Terminal Protection Degree IP 66 Topology Transformerless Standard Compliance EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683 *1 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage inverter *2 Any DC input voltage beyond the operating voltage range may result in inverter improper operating.
