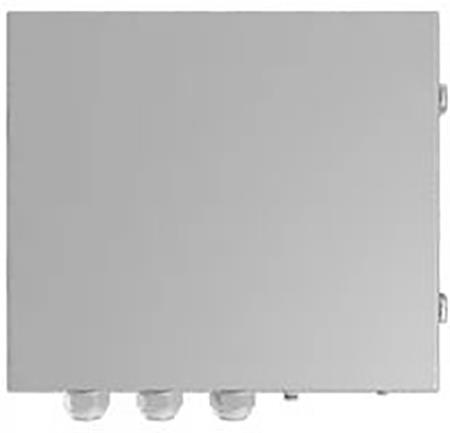

HUAWEI BACKUP BOX-B1 LUNA2000 - 3FASET
Varenr:
5478002028
EAN:
5705157322719
Huawei backup box-B1 for LUNA2000 batteri - 3faset
Technical Specification Backup Box-B1
Automatic detection & switchover
Provide Reliable backup power
AC Output (On grid)
Grid connection Three Phase
Rated voltage 380 V / 400 V
AC frequency 50Hz / 60Hz
AC output voltage range 342 V ~ 440 V
AC Output (Backup)
Load connection Single Phase
Rated voltage 220 V / 230 V
AC frequency 50Hz / 60Hz
Maximum apparent power 3,300 VA
Maximum output current 15.2 A
Switchover time <3 s
Operating temperature range -20 ? to +45 ?
Relative humidity range 0 %RH ~ 100 %RH
Dimensions (W * H * D) 400 x 350 x 130 mm
Weight 11 kg
Degree of protection IP 65
