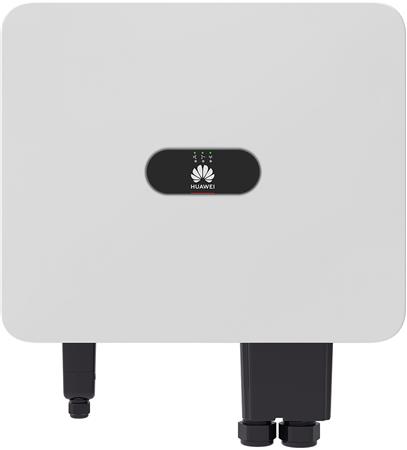

HUAWEI SUN2000-20K MB0 HYBRID INVERTER

Huawei SUN2000-20K-MB0 3-faset Smart PV Inverter, nominel effekt på 20,0kW. 2 MPP tracker. - Dongle er tilkøb, 10 års garanti, mulighed for IntelliCharge AI-integration. IntelliCharge.AI optimerer automatisk ladeplaner baseret på data fra energipriser, tariffer, vejr, forbrug og hardware information i realtid. Slutkunder kan bestille licenser direkte hos IntelliCharge.AI og straks få adgang til intelligent energistyring. Bestilling af IntelliCharge AI: Måneds- og årslicenser til Huawei Inverter Bestilling af IntelliCharge AI: 10-års licens til Huawei Inverter SUN2000-12/15/17/20/25K-MB0 Serie Smart Energy Controller Active Safety - Active Arcing Protection Battery-ready 2 Battery Terminals; Compatible with LUNA2000-S0 and S1 DC Input Recommended max. PV power 30,000 Wp Max. input voltage 1.100 V Max. input current per MPPT 30 A (two strings) / 20 A (single string) Max. short-circuit current 40 A Start-up voltage 200 V MPPT operating voltage range 200 V ~ 1,000 V Full-load MPPT voltage range 480 V ~ 800 V Rated input voltage 600 V Max. number of inputs 4 Number of MPP trackers 2 Smart String Energy Storage System Terminal Compatible Smart String ESS : LUNA2000-5/10/15-S0 LUNA2000-7/14/21-S1 (Available from 30/11/2023) Number of terminals 2 Max. charging power 21 kW (Single string) / 25 kW (Two strings) Max. discharging power 22.0 kW Max. operating current 26.25 A (per string) Operating voltage range 600 V ~ 980 V Output Rated output power 20,000 W Max. apparent power 22,000 VA Max. active power (cosf = 1) 22,000 W Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 240 Vac / 415 Vac; 3 W / N + PE Rated AC grid frequency 50 Hz / 60 Hz Adjustable power factor 0.8 leading ... 0.8 lagging Max. total harmonic distortion < 3 % Weight 21 kg Dimensions (W x H x D) 546 x 460 x 228 mm Protection level IP66 Certificates EN/IEC62109-1, EN/IEC62109-2
