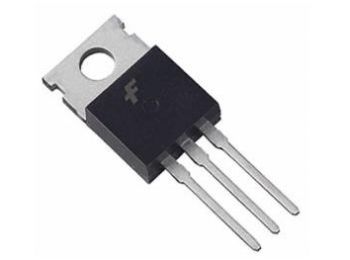

RFP12N10L Transistor - N-MOSFET, 100V, 12A LOGIC (TO220)
Varenr:
H10187
EAN:
5705412101875
Egenskaber:
- Design Optimized for 5 V Gate Drives
- Can be Driven Directly from QMOS, NMOS,TTL Circuits
- Compatible with Automotive Drive Requirements
- SOA is Power-Dissipation Limited
- Nanosecond Switching Speeds
- Linear Transfer Characteristics
- High Input Impedance
- Majority Carrier Device
Tekniske detaljer:
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 12A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 200mohm
- Rds(on) Test Voltage Vgs: 5V
- Threshold Voltage Vgs Typ: 2V
- Power Dissipation Pd: 60W
- Operating Temperature Min: -55°C
- Operating Temperature Max: 175°C
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- Current Id Max: 12A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Lead Spacing: 2.54mm
- Operationel temperatur: -55°C til +175°C
- Pulse Current Idm: 30A
- Termination Type: Through Hole
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 2V
- Voltage Vgs Rds on Measurement: 5V
- Voltage Vgs th Max: 2V
