Multiturn trimmepotmeter - 1kOhm lineær, 250mW, ±10%
Varenr:
H10202
EAN:
5705412102025
Professional multiturn trimming potentiometers. The cermet resistance element offers stability og high resolution. The trimmer is actuated by a screw with a slipping clutch ved each end of travel. End stops are marked by an audible click. All units have a blue plastic case which withstands all recognised board washing solvents.
Egenskaber:
- Manufacturert: SR Passives
- Vertical mounting
- Vertical adjustment
- Range: 10E til 5M (E3 series)
Tekniske detaljer:
- Maks. effekt: 250mW
- Tolerance: 10%
- Operating temperature: -55...125°C

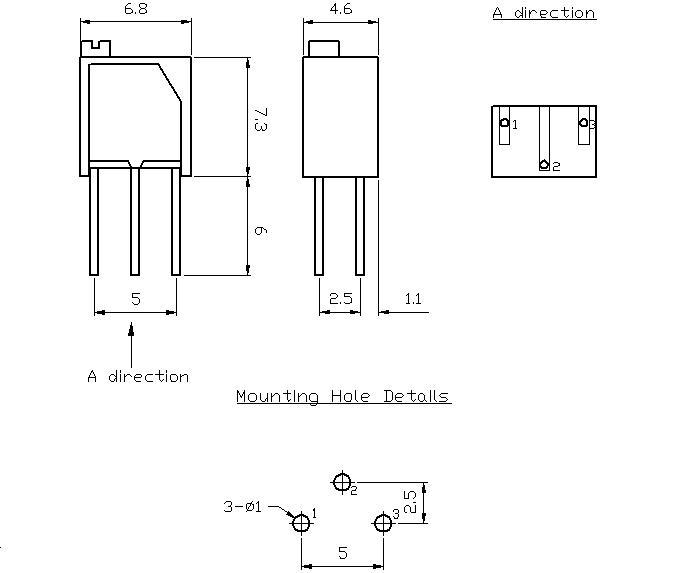

- Body dimensions: 6.8x6.8x4.6mm
- Terminal pitch: 5x2.5mm
- Rotation:
- Electrical: 12 turns nom.
Også kendt som: Cermet Multi-turn Trimmers
