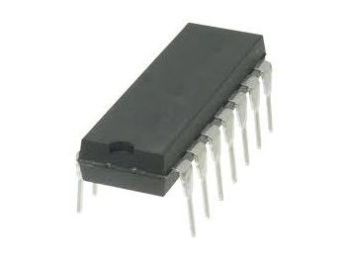

74HC27 IC - NOR-gate, 3-kan. 3-input, 2-6Vdc (DIP14)
Varenr:
H10534
EAN:
5705412105347
SN74HC27N er en tredobbelt 3-input positiv-NOR Gate med tre uafhængige kredsløb. Denne enhed udfører den boolske funktion Y = (A + B + C) \ eller Y = A \ B \ C \ i positiv logik.
Specifikationer:
- 20µA maksimalt ICC lavt strømforbrug
- ±4mA outputdrev ved 5V
- 1µA maksimal lav indgangsstrøm
- Udgange kan køre op til 10 LSTTL-belastninger
- 9ns forplantningsforsinkelse (tPD)
Tekniske detaljer:
- Logikfamilie / basisnummer: 74HC27
- Logiktype: NOR
- Udgangsstrøm: 5,2 mA
- Antal input: 3
- Forsyningsspænding: 2...6V
- Hus: DIP14
- Logisk IC-familie: 74HC
- Logisk IC-basenummer: 7427
- Operationel temperatur: -40...85°C
The SN74HC27N is a triple 3-input positive-NOR Gate contains three independent circuits. This device performs the Boolean function Y = (A + B + C)\ or Y = A\ B\ C\ in positive logic.
Specifications:
- 20µA maximum ICC low power consumption
- ±4mA output drive at 5V
- 1µA maximum low input current
- Outputs can drive up to 10 LSTTL loads
- 9ns propagation delay (tPD)
Specifications:
- Logic Family / Base Number: 74HC27
- Logic Type: NOR
- Output Current: 5.2mA
- No. of Inputs: 3
- Supply Voltage: 2...6V
- Case: DIP14
- Logic IC Family: 74HC
- Logic IC Base Number: 7427
- Operating temperature: -40...85°C
