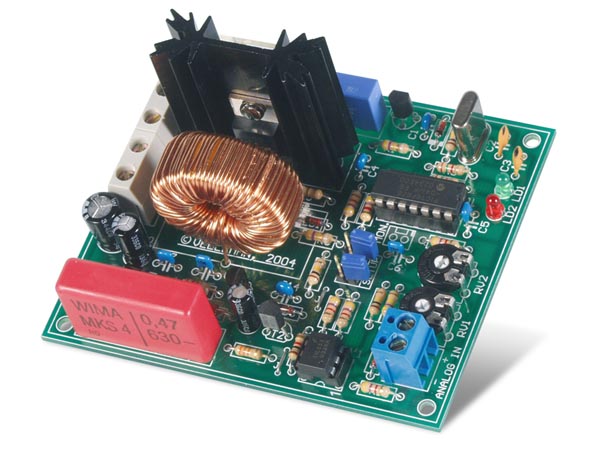

WSL8064 DC styret lysdæmper (K8064)
Varenr:
H10903
EAN:
5410329733506
Egenskaber:
- Enkel lysstyrkejustering med spænding
- Optisk isoleret justeringsindgang
- Forudindstillet justering for fuld lysstyrke
- Velegnet til glødelamper, halogenbelysning og lavspændingshalogenbelysning i kombination med en traditionel transformer
- "Blød-start"-funktion for at sikre lampens levetid
- Transformerbeskyttelse i tilfælde af defekte lyskilder
- LED status indikation
- Kompatibel med USB Interface: H10874 (se tilbehør)
Tekniske detaljer:
- Justeringsspænding: 0 til 12Vdc maks.
- Maks. justeringsstrøm: 2,25mA ved justeringsspænding på 12V
- Undertrykkelse af radio- og tv-interferens i henhold til EN55015
- Driftsspænding: 110-125V / 230-240Vac (50/60Hz)
- Maks. belastning: 750W / 230V eller 375W / 110V, 0-98% justerbar
- Maks. faseskift med induktiv belastning: 30°
- Printkortmål: 90x75x40mm
Features:
- Simple brightness adjustment by means of a DC voltage
- Optically isolated adjustment input
- Pre-set adjustment for full brightness
- Suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional transformer
- "Soft start" feature to ensure lamp longevity
- Transformer protection in case of defective light sources
- LED status indication
- Compatible with our computer interface cards: K8000, K8055
Specifications:
- Adjustment voltage: 0 to 12Vdc max.
- Max. adjustment current: 2.25mA at adjustment voltage of 12V
- Suppression of radio & TV interference according to EN55015
- Operating voltage: 110-125V or 230-240V AC (50/60Hz)
- Max. load: 750W/230V or 375W/110V, 0-98% adjustable
- Max. phase shift with inductive load: 30°
- PCB dimensions: 90 x 75 x 40mm / 3.5 x 3 x 1.6"
