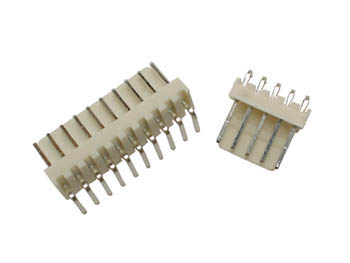

Printfatning - NS25, 8pol (1x8) han 90° 2,54mm benafst.
Varenr:
H11719
EAN:
5410329271367
Tekniske detaljer:
- Producent (varemærke): NINIGI
- Type stik: Raster signal, printfatning, han
- Stikserie: NS25
- Kontakthøjde: 2,54mm
- Orientering: Vinklet 90°
- Antal ben: 8
- Benkonfiguration: 1x8
- Maks. spænding: 250V
- Strøm: 3A
- Anvendelig print-tykkelse: 1,6mm
- Kontaktbelægning: Fortinnet
- Husmateriale: Polyamid
- Antændelighedsklasse: UL94V-0
- Operationel temperatur: -25...85°C
- Benstørrelse: 0,64x0,64x3,3mm
Specifications:
- Manufacturer: NINIGI
- Type of connector: Raster signal, wire-board
- Kind of connector: Male
- Connector series: NS25
- Contact pitch: 2,54mm
- Spatial orientation: Angled 90°
- Number of pins: 8
- Pin configuration: 1x8
- Rated voltage: 250V
- Current rating: 3A
- Applicable PCB thickness: 1,6mm
- Contact plating: Tinned
- Housing material: Polyamide
- Flamability rating: UL94V-0
- Operating temperature: -25...85°C
- Leads dimensions: 0,64 x 0,64 x 3,3mm
