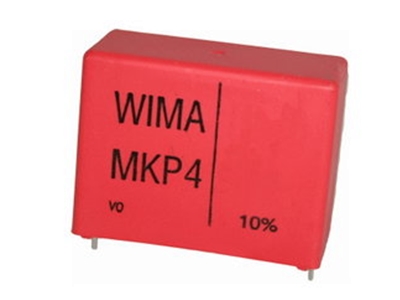

MKP4 polypropylen kondensator - 100nF (0,1uF ) 630V 15mm
Varenr:
H11909
EAN:
5410329214920
WIMA-kondensatorer af metalliseret polypropylen-film-type med pålidelige interne terminieringer. Baseret på et enkelt koncept: lederne skaber elektrisk kontakt med elektrodens komplette overflade, hvilket sikrer minimal induktans. Dette resulterer i kondensatorer med en god dæmpning og selvresonans. Til pulsapplikationer, f.eks. switchmode strømforsyninger, tv og monitorer, belysning og lyd/video-udstyr.
Tekniske detaljer:
- Producent (varemærke): WIMA
- Type kondensator: Polypropylen
- Kapacitans: 100 nF
- Kapacitans - µF: 0,1 µF
- Benafstand: 15mm
- Tolerance: ±10%
- Kondensatoranvendelse: Højfrekvente kredsløb, svingende kredsløb, tidsstyringskredsløb
- Husstørrelse: 7x14x18mm
- Benlængde: 6mm
- Klimaklasse: 55/100/56
- Operationel temperatur: -55...100°C
- Kabinetmateriale: UL94V-0 (Selvslukkende)
- Pulsmodstand: 250V/µs
- Montering: Printhul
- Maks. driftsspænding: 280VAC, 630Vdc
WIMA capacitors of metallised polypropylene film type with reliable internal end terminations. They use a simple concept : the wire makes electrical contact with the complete surface of the electrode, which ensures minimal inductance. This results in capacitors with a good attenuation og self-resonance. For pulse applications e.g. Switch mode power supplies, TV and monitor sets, Lighting and Audio/video equipment.
Specifications:
- Manufacturer: WIMA
- Type of capacitor: Polypropylene
- Capacitance: 100nF
- Capacitance - µF: 0,1µF
- Terminal pitch: 15mm
- Tolerance: ±10%
- Capacitor application: High frequency circuits, oscillating circuits, timing circuits
- Body dimensions: 7x14x18mm
- Leads length: 6mm
- Climate class: 55/100/56
- Operating temperature: -55...100°C
- Enclosure material: Self-extinguishing, UL94V-0
- Pulse resistance: 250V/µs
- Mounting: THT
- Max. operating voltage: 280VAC, 630VDC
