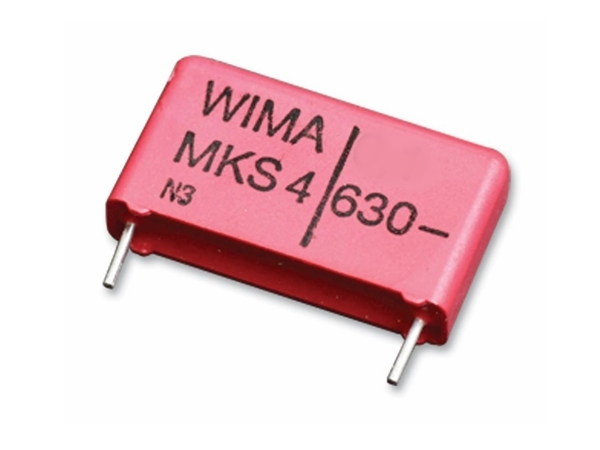

MKS4 polyester kondensator - 100nF (0,1uf) 630V 22,5mm
Varenr:
H11947
EAN:
5410329295769
WIMA capacitors have reliable internal end terminations. They use a simple concept : the wire makes electrical contact with the complete surface of the electrode, which ensures minimal inductance. This results in capacitors with a good attenuation og self-resonance (see technical data og graphs). Capacitors that meet strict requirements PCM 7.5 - 37,5mm. Metallised polyester film.
Tekniske detaljer:
- Benafstand: 22,5mm
- Operationel spænding (maks.): 630V
- Kapacitet: 0.1µF
- Dielektrisk materiale: polyethylene terephthalate film
- Kondensator elektroder: vacuum-deposited aluminium
- Hus: flame-retardant plastic case, UL 94 V-0, with epoxy resin seal / farve : Rød / marking : Sort
- Testspecifikationer: I overensstemmelse med CECC30400 og IEC 384-2
- Testing category: 55/100/21 in accordance with IEC
- Test spænding: 1.6 Ur, 2 sec.
- Temperaturområde: -55°C til + 100°C
- Kapacitans tolerance: ± 20% (± 10%)
