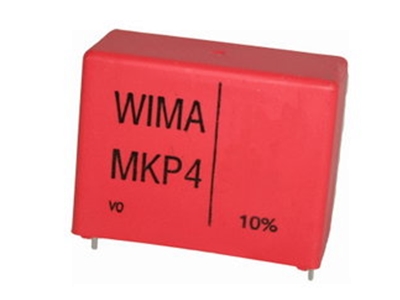

MKP4 polypropylen kondensator - 3300nF (3,3uf) 250V 27,5mm
Varenr:
H12036
EAN:
5410329295875
WIMA-kondensatorer af metalliseret polypropylenfilm-type med pålidelige interne termineringer. De bruger et enkelt koncept: lederen skaber elektrisk kontakt med elektrodens komplette overflade, hvilket sikrer minimal induktans. Dette resulterer i kondensatorer med en god dæmpning og selvresonans. Til pulsapplikationer, fx switchmode strømforsyninger, TV og monitor, belysning og audio/video-udstyr.
Tekniske detaljer:
- Producent (varemærke): WIMA
- Type kondensator: Polypropylen
- Kapacitans: 3,3 µF
- Benafstand: 27,5mm
- Tolerance: ±10%
- Kondensatoranvendelse: højfrekvente kredsløb, oscillerende kredsløb, tidsstyringskredsløb
- Husstørrelse: 13x24x31,5mm
- Benlængde: 6mm
- Klimaklasse: 55/100/56
- Operationel temperatur: -55...100°C
- Husmateriale: UL94V-0 (Selvslukkende)
- Pulsmodstand: 100V/µS
- Montering: Printhul
- Maks. driftsspænding: 160VAC, 250Vdc
WIMA capacitors of metallised polypropylene film type with reliable internal end terminations. They use a simple concept : the wire makes electrical contact with the complete surface of the electrode, which ensures minimal inductance. This results in capacitors with a good attenuation og self-resonance. For pulse applications e.g. Switch mode power supplies, TV and monitor sets, Lighting and Audio/video equipment.
Specifications:
- Manufacturer: WIMA
- Type of capacitor: Polypropylene
- Capacitance: 3.3µF
- Terminal pitch: 27,5mm
- Tolerance: ±10%
- Capacitor application: high frequency circuits, oscillating circuits, timing circuits
- Body dimensions: 13x24x31.5mm
- Leads length: 6mm
- Climate class: 55/100/56
- Operating temperature: -55...100°C
- Enclosure material: self-extinguishing, UL94V-0
- Pulse resistance: 100V/?s
- Mounting: THT
- Max. operating voltage: 160VAC, 250VDC
