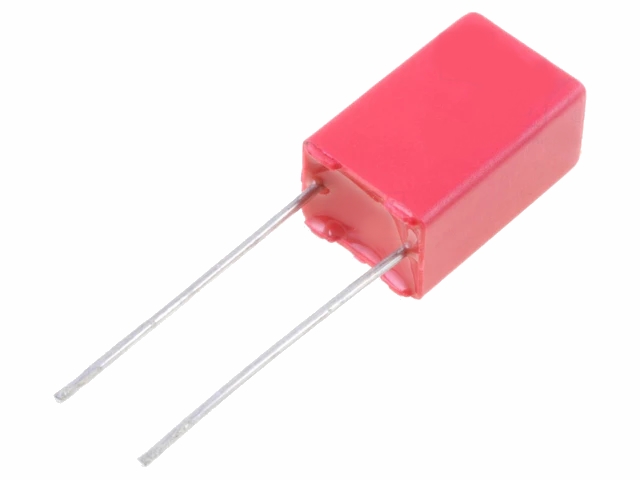

MKS2 polyester kondensator - 470nF (0,47uF) 63V 5mm
Varenr:
H12112
EAN:
5410329296070
WIMA capacitors have reliable internal end terminations. They use a simple concept : the wire makes electrical contact with the complete surface of the electrode, which ensures minimal inductance. This results in capacitors with a good attenuation og self-resonance (see technical data og graphs). Miniature-type capacitors PCM 5mm. Metallised polyester film.
Tekniske detaljer:
- Benafstand: 5mm
- Operationel spænding (maks.): 63Vdc / 40Vac
- Kapacitet: 0.47µF
- Dielektrisk materiale: polyethylene-terephthalate film
- Kondensator elektroder: vacuum-deposited aluminium
- Hus: flame-retardant plastic case, UL 94 V-0, with epoxy resin seal / farve : Rød / marking : Hvid
- Testspecifikationer: in accord. with IEC 60384-2 og EN 130 400
- Test category: 55/100/21 in accordance with IEC
- Test spænding: 1.6 Ur, 2 sec.
- Temperaturområde: -55°C til +100°C
- Kapacitans tolerance: ± 20% (± 10%)
