Miniature relæ - 3VDC 10A, 1 x skifte (SPDT), 5-ben 2mm
Varenr:
H12339
EAN:
5705412123396
Tekniske detaljer:
- Producent (varemærke): RELPOL
- Relætype: Elektromagnetisk
- Relævariant: Miniature

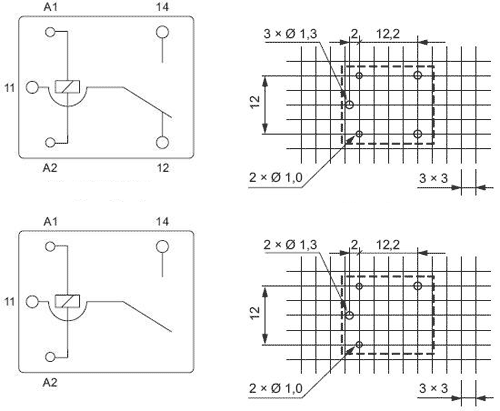

- Kontaktkonfiguration: SPDT
- Nominel spolespænding: 3VDC
- Maks. AC-kontaktstrøm (ved resistiv belastning): 10A / 240VAC
- Maks. DC-kontaktstrøm (ved resistiv belastning): 15A / 24VDC
- Maks. skiftespænding: 277VAC, 24VDC
- Montering: Printhul
- Spolemodstand: 25 ohm
- Operationel spolespænding: 2,25 ... 3,9VDC

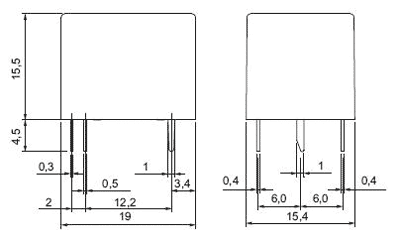

- Husstørrelse: 19x15,4x15,5mm
- Spolestrømforbrug: 360mW
- IP-rating: IP64
- Operationel temperatur: -30 ... 55°C
- Relæserie: RM50
- Kontakt modstand: 100mOhm
- Kontaktmateriale: AgSnO2
- Benafstand: 2mm
Specifications:
- Manufacturer: RELPOL
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 3V DC
- AC contacts rating (at resistance load): 10A / 240VAC
- DC contacts rating (at resistance load): 15A / 24VDC
- Switched voltage: max 277V AC, max 24V DC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 25 ohm
- Coil voltage min.: 2,25V DC
- Coil voltage max. : 3,9V DC
- Body dimensions: 19 x 15.4 x 15.5mm
- Coil power consumption: 360mW
- IP rating: IP64
- Operating temperature: -30...55°C
- Relay series: RM50
- Contact resistance: 100m?
- Contact material: AgSnO2
- Terminal pitch: 2mm
