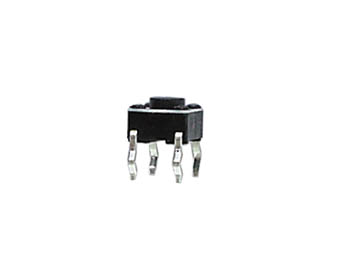

TACT mikrotrykkontakt - 6x6mm, H=4,3mm, 1,6N
Varenr:
H12477
EAN:
5410329282738
Tekniske detaljer:
- Producent (varemærke): NINIGI
- Type switch: Microswitch TACT
- Skiftemetode: SPST-NO
- Antal positioner: 2
- DC-kontaktstrøm (ved resistiv belastning): 0,05A 12Vdc
- Montering: Printhul
- Trykstyrke: 1,6N
- Aktuatorhøjde: 0,8mm
- Knaphøjde (fra print): 4,3mm
- Kontaktkonfiguration: OFF-(ON)
- Knapform: rund
- Benafstand: 4,5x6,5mm
- Operationel temperatur: -25...70°C
- Aktuatorfarve: Sort
- Montage: Printhul
- Maks. kontaktmodstand: 50 mOhm
- Min. isoleringsmodstand: 100 Mohm
- Husstørrelse: 6x6mm
- Loddetemperatur: 250°C
- Antal stabile positioner: 1
Specifications:
- Manufacturer: NINIGI
- Type of switch: Microswitch TACT
- Switching method: SPST-NO
- Number of positions: 2
- DC contacts rating @R: 0,05A 12V DC
- Mounting: THT
- Operating Force: 1.6N
- Button height: 4.3mm
- Contacts configuration: OFF-(ON)
- Button shape: Round
- Terminal pitch: 4.5x6.5mm
- Operating temperature: -25...70°C
- Actuator colour: Black
- Leads: For PCB, straight
- Max. contact resistance:: 50mΩ
- Min. insulation resistance: 100MΩ
- Body dimensions: 6x6mm
- Soldering temperature: 250°C
- Stable positions number: 1
