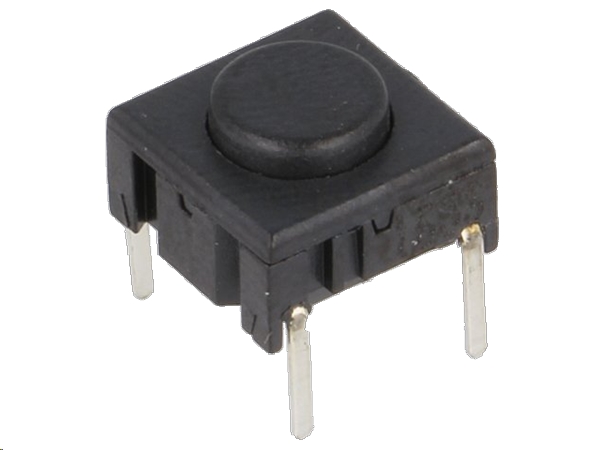

TACT mikrotrykkontakt - 10x10mm, H=6,4mm
Varenr:
H12482
EAN:
5410329333874
Tekniske detaljer:
- Contact Configuration: SPST-NO
- Operating Force: 3,5N
- Contact Voltage DC Nom: 24V
- Contact Current Max: 50mA
- Actuation Type: Top
- Switch Terminals: Through Hole
- Actuator / Cap Colour: Sort
- Knap diameter: Ø6,5mm
- Farve: Sort
- Contact Current DC Max: 50mA
- Contact Current Max: 50mA
- Contact Material: Silver
- Contact Resistance: 30mohm
- Contact Voltage DC Max: 24V
- Contact Voltage DC Nom: 24V
- External Depth: 10,4mm
- External Length / Height: 6,4mm
- External Width: 10,4mm
- Fixing Centres LxW: 10.6mm x 7.62mm
- IP / NEMA Rating: IP67
- Insulation Resistance: 10mohm
- No. of Mechanical Operations: 10000000
- Operationel temperatur: -40 tol 115°C
- PCB Hole Diameter: 0,9mm
- Panel Cutout Diameter: 6,5mm
- Series: MULTIMEC
- Stroke Length Max: 1mm
- Terminal Type: Through Hole
