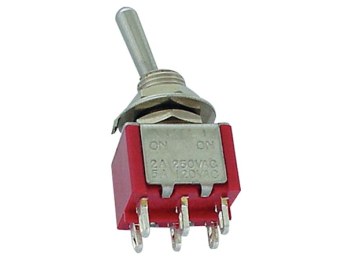

Vippekontakt - 2P ON-OFF-(ON), printmont.
Varenr:
H12570
EAN:
5410329267056
Tekniske detaljer:
- Skiftepositioner:
- 2-3, 5-6: ON
- OPEN: OFF
- 2-1, 5-4: (ON)
- Remark: PCB type
- Contact rating: 5A with resistive load of 120Vac eller 28Vdc
- Elektrisk levetid: 50000 make-and-break cycles ved full load
- Kontaktmodstand: initially maks. 10mohm ved 2-4Vdc / 10mA for both coin silver og gold-plated contacts
- Isolationsmodstand: min. 1000Mohm
- Dielektrisk styrke: 1000Vrms ved sea level
- Operationel temperatur: -30°C til +85°C
- Materialer:
- Hus: melamine eller diallyl phthalate (DAP)
- Toggle handle: brass, chrome-plated
- Bushing: brass, nickel-plated
- Hus: stainless steel
- End contact: coin silver, silver-plated
- End terminal: brass, silver-plated
- Centre contact og terminal: brass, silver-plated
