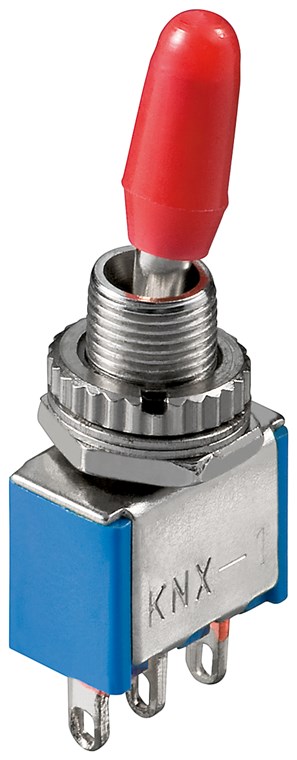

Vippekontakt - 1P ON-ON, low cost (Ø6mm)
Varenr:
H12580
EAN:
5410329278236
Tekniske detaljer:
- Type kontakt: Toggle
- Antal stillinger: 2
- Kontaktkonfiguration: SPDT
- Skiftemetode: ON-ON
- AC kontaktstrøm (ved resistiv belastning): 3A 250Vac
- Ledninger: Til lodning
- Operationel temperatur: -55...85°C
- Slags vippe: Med plastbeskytter
- Monteringshul diameter: Ø6mm
- Knophøjde: 11mm
- Maks. kontaktmodstand: 20 mOhm
- Husstørrelse: 12,5x6,5x9,5mm
- Elektrisk levetid: 20000 cyklusser
- Aktuatormateriale: Metal
- Antal stabile positioner: 2
Specifications:
- Type of switch: Toggle
- Number of positions: 2
- Contacts configuration: SPDT
- Switching method: ON-ON
- AC contacts rating @R: 3A 250V AC
- Leads: For soldering
- Operating temperature: -55...85°C
- Kind of toggle: With plastic protector
- Mounting hole diameter: Ø6mm
- Knob height: 11mm
- Max. contact resistance: 20 mOhm
- Body dimensions: 12.5x6.5x9.5mm
- Electrical life: 20000 cycles
- Actuator material: Metal
- Stable positions number: 2
