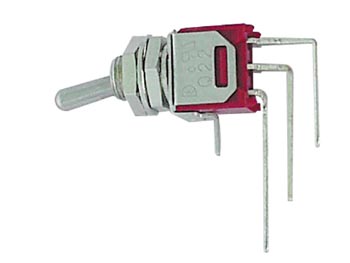

Miniature vippekontakt - 1P ON-ON 90° printben

Tekniske detaljer:

• Skiftepositioner:
  • 2-3: ON
  • OPEN: NONE
  • 2-1: ON
• Contact rating: 3A with resistive load ved 120Vac eller 28Vdc
• Kontaktmodstand: initially maks. 20mohm ved 2-4Vdc / 100mA for both coin silver og gold-plated contacts
• Dielektrisk styrke: 1000Vrms ved sea level
• Isolationsmodstand: min. 1000Mohm
• Elektrisk levetid: 60000 make-and-break cycles ved full load
• Operationel temperatur: -30°C til +85°C
• Materialer:
  • Hus: diallyl phthalate (DAP)
  • Toggle handle: brass, chrome-plated
  • Bushing: brass, nickel-plated
  • Hus: stainless steel
  • Terminal/switch support: brass, electrolytic-plated
  • Contacts: coin silver, silver-plated
  • Centre contact og terminal: brass, silver-plated

Også kendt som: Switches > Toggle Switches > Toggle Switches - Subminiature > Toggle Switches - Subminiature - 90° Vertical > Spdt Switches
