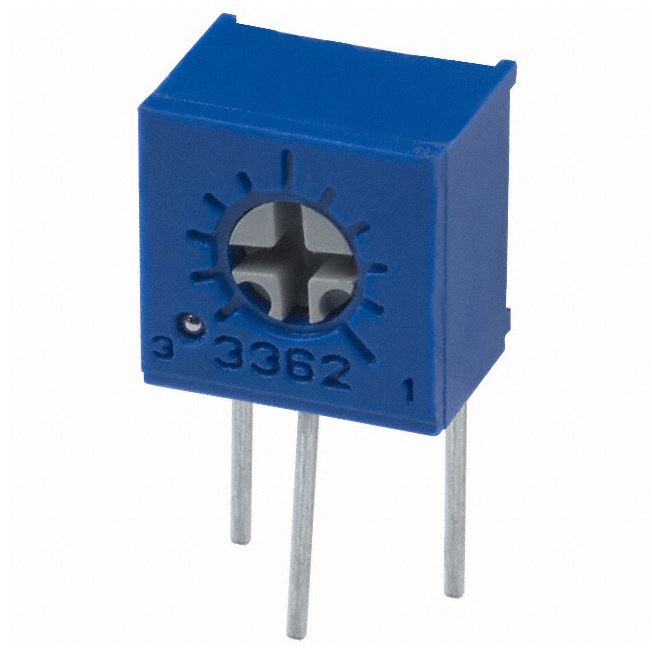

Single-turn trimmepotmeter - 7mm vert. 10kOhm, 0,5W (±10%)
Varenr:
H13384
EAN:
5705412133845
Kompakte 7x7mm firkantede potentiometre med enkelt drejning. Keramik teknologi sikrer stabilitet og pålidelighed. Disse printmonterede trimmere fås i forskellige versioner, som gør det muligt for brugeren at tilpasse trimmeren enten fra toppen eller fra siden. Alle komponenter er forseglet til at modstå print-vaskeopløsningsmidler.
Tekniske detaljer:
- Producent (varemærke): BOURNS
- Type potentiometer: Montering, enkelt drejning, lodret
- Modstand: 10 kOhm
- Effekt: 500 mW
- Tolerance: ±10%
- Egenskaber: Lineær
- Potentiometer standard: 3/8" (7x7mm)
- Mekanisk rotationsvinkel: 310°
- Operationel temperatur: -55...125°C
- Montering: Printhul
- Benafstand: 5,08x2,54mm
- Spormateriale: Keramik
- Temperaturkoefficient: 100 ppm/°C
- Mekanisk holdbarhed: 200 cykler
- Producentserie: 3362W
Compact 7x7mm square single-turn trim potentiometers. The cermet teknologi ensures stability og reliability. These PCB-mounted trimmers are available in different versions, requiring the user til adjust the trimmer either from the top eller from the side. All components are sealed til withstand PCB washing solvents.
Specifications:
- Manufacturer: BOURNS
- Type of potentiometer: mounting
- Kind of potentiometer: single turn, vertical
- Resistance: 10 kOhm
- Power: 500mW
- Tolerance: ±10%
- Characteristics: linear
- Potentiometer standard: 3/8" (7x7mm)
- Mechanical rotation angle: 310°
- Operating temperature: -55...125°C
- Mounting: THT
- Terminal pitch: 5,08x2,54mm
- Track material: cermet
- Temperature coefficient: 100ppm/°C
- Mechanical durability: 200 cycles
- Manufacturer series: 3362W
