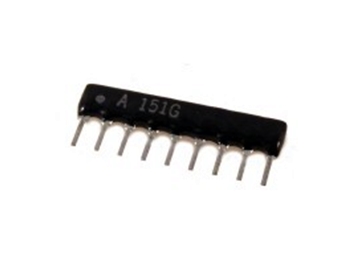

Modstandsnetværk 8x470kOhm (1 fælles)
Varenr:
H13386
EAN:
5705412133869
Thick-film resistor networks are metal elements glazed on a ceramic substrate og coated with a special epoxy resin. Originally designed as single-in-line packages, thick-film resistor networks improve the density of the circuit in question.
Tekniske detaljer:
- Number of resistor elements: 8
- Maks. effekt: 0.125W
- Modstandsinterval: 10E til 1M (E12)
- Operationel temperatur: -25°C til +155°C
- Tolerance: ±5%
- Maks. driftsspænding: 150V
