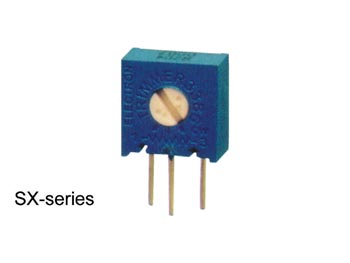

Single-turn trimmepotmeter - 10mm vert. 2kOhm 0,5W (±10%)
Varenr:
H13586
EAN:
5705412135863
10mm square single-turn trim potentiometers. The cermet teknologi ensures stability og reliability. These PCB-mounted trimmers are available in different versions, requiring the user til adjust the trimmer either from the top eller from the side. All components are sealed til withstand PCB washing solvents.
Egenskaber:
- CITEC 4295X
- Vertical mounting
- Horizontal adjusment
- Pin layout: triangle
- Range: 10E til 2M (E3 series)
Tekniske detaljer:
- Maks. effekt: 0.5W ved 85°C
- Temperaturområde: -55°C til +125°C
- Tolerance: ±10%
- Working spænding: 300Vdc
- Rotation:
- Electrical: 270°
- Mechanical: 300°
Også kendt som: Cermet Single-turn Trimmers > Cermet Single-turn Trimmers (sx-series) (vert Mount / Hor Adj / Triangle)
