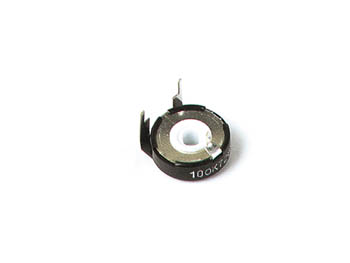

Vandret trimmepotmeter - 47kOhm, 15mm, spindel (PT15NV)
Varenr:
H13628
EAN:
5410329250478
Tekniske detaljer:
- Producent (varemærke): PIHER
- Type potentiometer: Vandret, enkelt drejning
- Modstand: 47 kOhm
- Effekt: 250 mW
- Tolerance ±30%
- Egenskaber: Lineær
- Potentiometerserie: PT15NV
- Potentiometer standard: 15mm
- Mekanisk rotationsvinkel: 265 ±5°
- Elektrisk rotationsvinkel: 250 ±20°
- Drejningsmoment 0,5...2,5Ncm
- Maks. driftsspænding: 250V
- Operationel temperatur: -25...70°C
- Montering: Printhul
- Benafstand: 12,5x10mm
- Spormateriale: Carbon
- Husstørrelse: Ø15x6mm
Specifications:
- Manufacturer: PIHER
- Kind of potentiometer: horizontal, single turn
- Resistance: 47 kOhm
- Power: 250mW
- Tolerance ±20%
- Characteristics: Linear
- Potentiometer series: PT15NV
- Potentiometer standard: 15mm
- Mechanical rotation angle: 265 ±5°
- Electrical rotation angle: 250 ±20°
- Torque 0,5...2,5Ncm
- Max. operating voltage: 250V
- Operating temperature: -25...70°C
- Mounting: THT
- Terminal pitch: 12,5x10mm
- Track material: Carbon
- Body dimensions: Ø15x6mm
