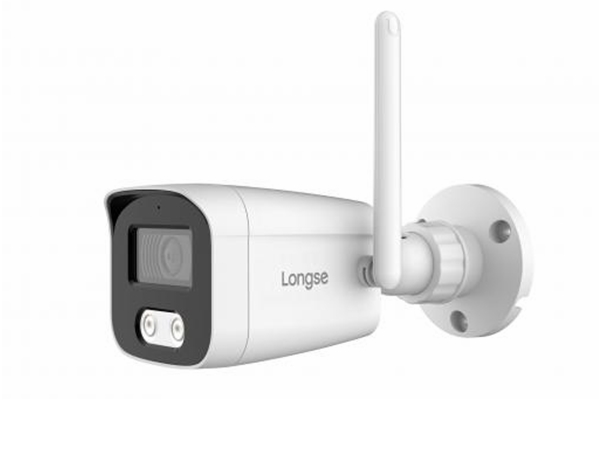

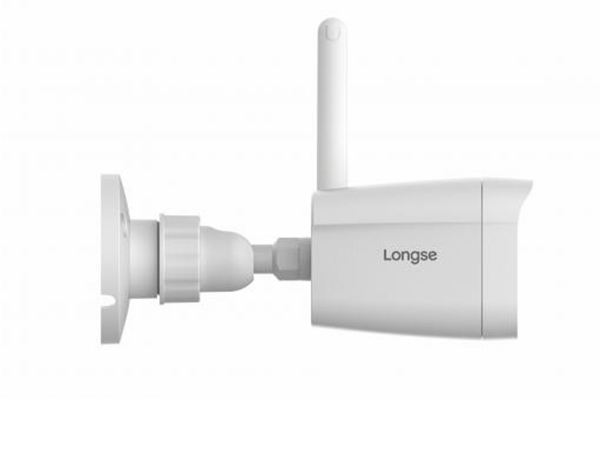

WiFi IP projektilkamera - 4MP, SD port, 25m IR (IP67)
Varenr:
H14430
EAN:
5705412144308
4MP inde- og udendørs WiFi IP overvågningskamera med 25m IR natlys. Du kan tilgå den direkte trådløst via WiFi, og/eller du kan forbinde den til en digital videooptager (se tilbehør) trådløst via WiFi eller via netværkskabel.
Egenskaber:
- Billedbehandling af høj kvalitet med 4 MP opløsning
- 1/2,9" progressive scan CMOS-sensor
- Understøtter H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG-komprimering
- Understøtter WIFI, op til 300m (ved frit sigte)
- Understøtter DWDR (Digital Wide Dynamic Range, for forbedret billedkvalitet - lysere mørke områder)
- Hus: Metal, IP67
Tekniske detaljer:
- Kamera:
- Billedsensor: 1/2,9" Progressive Scan CMOS-sensor
- Opløsning: 4MP
- Effektive pixel: 2560 (H)*1440 (V)
- Kompression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
- Lydkomprimering: G.711A/U, AAC
- TV-system: PAL/NTSC
- Elektronisk lukkertid: Auto 1/3-1/100000Sek
- Minimal belysning:
- Farve: 0,008 Lux ved (F1,6, AGC ON)
- S/H: 0 Lux med IR
- Signal/støjforhold: 60dB
- Scanningssystem: Progressivt
- Videoudgang: Netværk
- Nulstillingsknap: Valgfri
- Objektiv:
- Fokuslængde: Board Lens 3,6mm
- Fokuskontrol: Fast
- Objektivtype: Fast
- Nattesyn:
- Infrarød LED: 42µ x 2 stk.
- Infrarød afstand: 25M
- IR-status: Autokontrol
- IR Power On: Smart, manuel og tidsindstillet tilstand
- Netværk:
- Ethernet: RJ-45 (10/100Base-T)
- Protokol: TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, Qos, 802.1x
- ONVIF: Understøtter ONVIF 19.12 (Profil S/T/G)
- P2P: JA, understøtter QR-kode
- POE: Nej
- Videoforsinkelse: 0,3S (inden for LAN)
- Main Stream 1: 2688*1512@25fps
- Main Stream 2: 2560*1440@30fps
- Main Stream 3: 1920*1080@30fps, 1280*720@30fps
- Understream 1: 1280*720@30fps
- Sub Stream 2: 720*480@30fps
- IE-browser: IE8-11, Google Chrome, Firefox, Mac Safari
- Smart Phone support: iPhone, Android
- Trådløs:
- Antenne: 3dbi
- Wi-Fi: Wi-Fi (IEEE802.11b/g/n), 2,4 GHz
- WIFI rækkevidde: Maks. 300m (ingen forhindringer)
- AI funktioner:
- Intelligent Analyse: Indtrængningsdetektion (baseret på menneske- og køretøjsdetektion), bevægelsesdetektion baseret på menneskelig detektion
- Kamerafunktioner:
- Dag/nat: Farve/ B&W (IR-CUT)
- Billedkonfiguration: Mætning/lysstyrke/kontrast/skarphed, spejl, 3D NR , hvidbalance, antiflimmer, videomanipulation, HLC, forvrængning
- Understøttelse af korridormønster: Ja
- ROI: Ja
- Defog Mode: Ja
- BLC: Ja
- WDR: DWDR
- Bevægelsesdetektion: Ja
- Privatlivsmaskering: 3 rektangulære zoner
- Optagetilstand: NVR/CMS/Web
- Sprog: Forenklet kinesisk, traditionel kinesisk, engelsk, bulgarsk, polsk, arabisk, tysk, russisk, fransk, koreansk, portugisisk, japansk, tyrkisk, spansk, hebraisk, italiensk, nederland, tjekkisk, vietnamesisk
- Interface:
- Lyd: Indbygget mikrofon
- SD-kortplads: Valgfri intern, understøttelse Maks. 512 GB
- Generel:
- Hus: Metal, IP67
- Anti-cut beslag: Nej
- IR Cut Filter: Ja
- Operationel temperatur: -20...60°C RH95% Maks
- Opbevaringstemperatur: -20...60°C RH95% Maks
- Strømkilde: DC12V±10%, 500mA
- Dimension: 176,6 (B) x 67 (H) x 70 (D) mm
- Vægt: 336g
Features:
- High quality imaging with 4MP resolution
- 1/2.9" Progressive Scan CMOS sensor
- Support H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG compression
- Support WIFI, up to 300m (no obstacles)
- Support DWDR (Digital Wide Dynamic Range, for enhanced image quality - brightened dark areas)
- Housing: Metal, IP67
Specifications:
- Camera:
- Image Sensor: 1/2.9" Progressive Scan CMOS Sensor
- Resolution: 4MP
- Effective Pixels: 2560(H)*1440(V)
- Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
- Audio Compression: G.711A/U, AAC
- TV System: PAL/NTSC
- Electronic Shutter Time: Auto 1/3-1/100000Sec
- Minimun Illumination:
- Color: 0.008 Lux @ (F1.6, AGC ON)
- B/W: 0 Lux with IR
- S/N Ratio: 60dB
- Scanning System: Progressive
- Video Output: Network
- Reset Button: Optional
- LENS Type:
- Focus Length: Board Lens 3.6mm
- Focus Control: Fixed
- Lens Type: Fixed
- Night Vision:
- Infrared LED: 42µ x 2 pcs.
- Infrared Distance: 25M
- IR Status: Auto Control
- IR Power On: Smart, Manual & Timed mode
- Network:
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, SMTP, UDP, Qos, 802.1x
- ONVIF: Support ONVIF 19.12(Profile S/T/G)
- P2P: YES, Support QR Code
- POE: N/A
- Video Delay: 0.3S (within the LAN)
- Main Stream 1: 2688*1512@25fps
- Main Stream 2: 2560*1440@30fps
- Main Stream 3: 1920*1080@30fps, 1280*720@30fps
- Sub Stream 1: 1280*720@30fps
- Sub Stream 2: 720*480@30fps
- IE Brower: IE8-11, Google Chrome, Firefox , Mac Safari
- Smart Phone support: iPhone, Android
- Wireless:
- Antena: 3dbi
- Wi-Fi: Wi-Fi(IEEE802.11b/g/n),2.4Ghz
- WIFI Range: Max. 300m (no obstacles)
- AI Functions:
- Intelligent Analysis: Intrusion Detetion (based on human and Vehicle Detection), motion detection based on human detection
- Camera Features:
- Day/Night: Color/ B&W (IR-CUT )
- Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering, HLC, Distortion
- Corridor Pattern Support: Yes
- ROI Support: Yes
- Defog Mode Support: Yes
- BLC Support: Yes
- WDR: DWDR
- Motion Detection: Support
- Privacy Masking: 3 Rectangular Zone
- Recording Mode: NVR/CMS/Web
- Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese
- Interface:
- Audio: Built-in MIC
- SD Card Slot: Optional Internal, Support Max 512GB
- General:
- Housing: Metal, IP67
- Anti-cut Bracket: No
- IR Cut Filter: Yes
- Operation Temperature: -20...60°C RH95% Max
- Storage Temperature: -20...60°C RH95% Max
- Power Source: DC12V±10%, 500mA
- Dimension: 176.6(W) x 67(H) x 70(D)mm
- Weight: 336g
