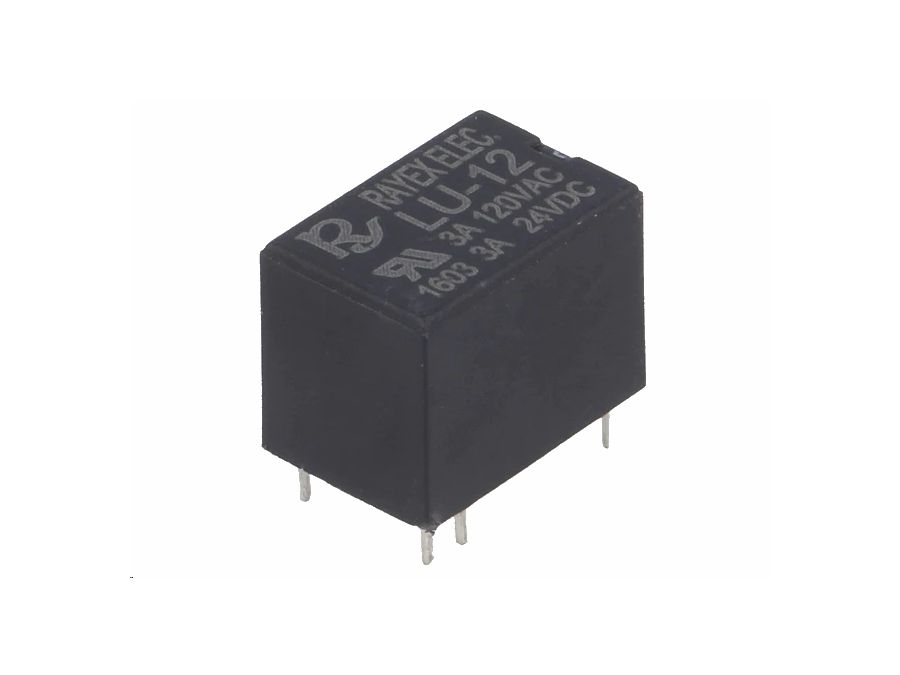

Miniature relæ - 12VDC / 3A, 1 x skifte (SPDT), 2,54mm
Varenr:
H15262
EAN:
5705412152624
Tekniske detaljer:
- Producent (varemærke): Recoy AYEX ELECTRONICS
- Relæ type: Elektromagnetisk
- Kontakt konfiguration: SPDT
- Nominel spolespænding: 12Vdc
- Maks. kontaktstrøm: 3A
- Maks. Skiftet spænding: 24Vdc, maks. 120Vac
- Relævariant: miniature
- Montering: Printhul
- Spolemodstand: 720 Ohm
- Driftstid: 6ms

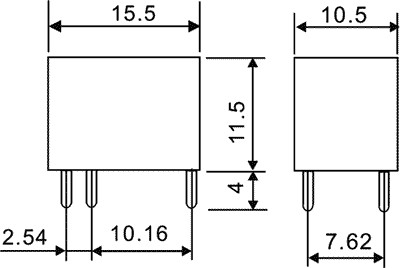

- Husstørrelse: 15,5x10,5x11,5mm
- Udgivelsestid: 3ms
- Operationel temperatur: -25...40°C
- Relæserie: LU
- Kontaktmodstand: 100 mOhm
- Kontaktmateriale: AgNi

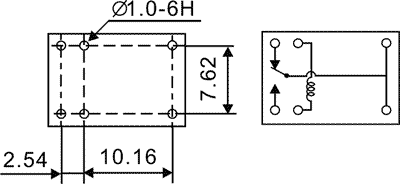

- Benafstand: 2,54mm
- Spolestrøm: 16,7 mA
Også kendt som: RSM954-0111-85-1012, AZ952-1C-12DSE, FBR211SBD012.
Specifications:
- Manufacturer: Recoy AYEX ELECTRONICS
- Type of relay: Electromagnetic
- Contacs configuration: SPDT
- Rated coil voltage: 12V DC
- Contact current max.: 3A
- Switched voltage: Max. 24V DC, max. 120V AC
- Relay variant: Subminiature
- Mounting: THT
- Coil resistance: 720Ω
- Operate time: 6ms
- Body dimensions: 15.5x10.5x11.5mm
- Release time: 3ms
- Operating temperature: -25...40°C
- Relay series: LU
- Contact resistance: 100 mΩ
- Contact material: AgNi
- Terminal pitch: 2.54mm
- Coil current: 16.7mA
