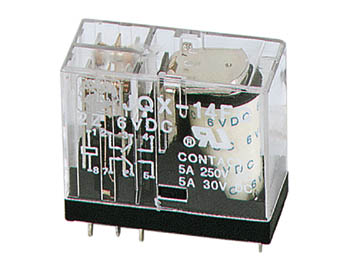

Vertikalt relæ - 12VDC / 5A, 2 x skifte (DPDT)
Varenr:
H15271
EAN:
5410329295363
Tekniske detaljer:
- Producent (varemærke): OMRON OCB
- Type relæ: elektromagnetisk
- Kontaktkonfiguration: DPDT
- Nominel spolespænding: 12Vdc
- Maks. AC kontaktstrøm (ved resistiv belastning): 5A / 250Vac
- Maks. DC-kontaktstøm (ved resistiv belastning): 5A / 30Vdc
- Maks. kontaktstrøm: 5A
- Maks. koblet spænding: 125Vdc, 380VAC
- Relævariant: miniature, monostabil
- Montering: Printhul eller sokkel (se tilbehør)
- Spolemodstand: 275 Ohm
- Driftstid: 15ms
- Frigivelsestid: 5ms

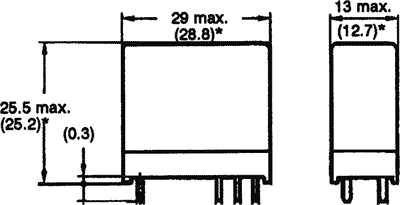

- Husstørrelse: 29x13x25,5mm
- Operationel temperatur: -40...70°C
- Relæserie: G2R
- Kontaktmodstand: 50mOhm

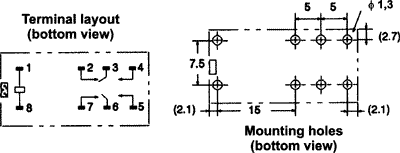

- Benafstand: 5mm
- Spolestrøm: 43,6mA
- Kapslingsbeskrivelse: standard tætning
- Ledninger: til PCB
Også kendt som: JQX-14FC-2C.
Tekniske detaljer:
- Manufacturer: OMRON OCB
- Type of relay: electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 12V DC
- AC contacts rating @R (at resistive load): 5A / 250V AC
- DC contacts rating @R (at resistive load): 5A / 30V DC
- Max. contact current: 5A
- Max. switched voltage: 125VDC, 380VAC
- Relay variant: miniature, monostable
- Mounting: PCB
- Coil resistance: 275 Ohm
- Operate time: 15ms
- Release time: 5ms
- Body dimensions: 29x13x25.5mm
- Operating temperature: -40...70°C
- Relay series: G2R
- Contact resistance: 50mOhm
- Terminal pitch: 5mm
- Coil current: 43,6mA
- Related items: PODST-3
- Enclosure description: standard seal
- Leads: for PCB
