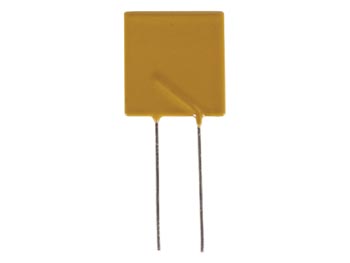

PTC genskabende sikring - 1,1-2,2A / 30VDC
Varenr:
H15557
EAN:
5410329214708
The PTC resistor resets automatisk og protects your circuit permanently.
Tekniske detaljer:
- Hold strøm Ih (A): 1.10
- Trip strøm It (A): 2,20

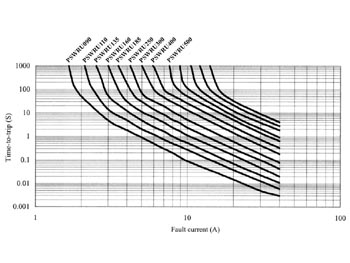

- Maks. time til trip (at 5 x Ih): 6.6
- Maks. strøm 1: 40 A
- Maks. strøm 2: 40A
- Maks. spænding: 30 Vdc
- Maks. efffekt: 0,7 W
- Resistance tolerance:
- Rmin (ohm): 0,050
- Rmaks. (1 hour after tripping) (ohm): 0.17

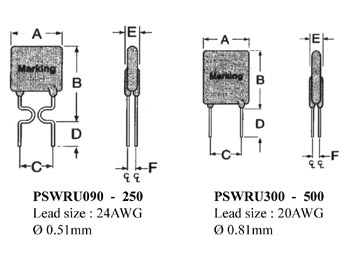

- Størrelse:
- A (max): 7.4
- B (max): 14,2
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.0
- F (typ): 0.9
- Operating strøm: 900mA ~9.0A
- Maks. spænding: 30V

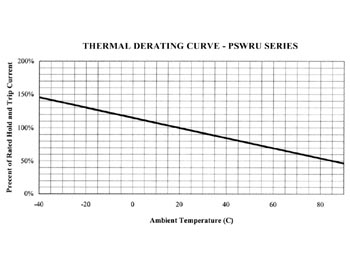

- Operationel temperatur: -40°C til +85°C
- Materialer:
- Leads: tin-plated copper
- Insulating: flame-retardant epoxy, meets requirement UL-94V-O
Også kendt som: Ptc Resettable Fuses With Radial Leads > Ru Series
The PTC resistor resets automatisk og protects your circuit permanently.
Tekniske detaljer:
- Hold strøm Ih (A): 1.10
- Trip strøm It (A): 2,20
- Maks. time til trip (at 5 x Ih): 6.6
- Maks. strøm: 40 A
- Maks. spænding: 30 Vdc
- Maks. efffekt: 0,7 W
- Resistance tolerance:
- Rmin (ohm): 0,050
- Rmaks. (1 hour after tripping) (ohm): 0.17
- Størrelse:
- A (max): 7.4
- B (max): 14,2
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.0
- F (typ): 0.9
- Operating strøm: 900mA ~ 9.0A
- Maks. strøm: 40A
- Maks. spænding: 30V
- Temperaturområde: -40°C til +85°C
- Materialer:
- Leads: tin-plated copper
- Insulating: flame-retardant epoxy, meets requirement UL-94V-O
Også kendt som: Ptc Resettable Fuses With Radial Leads > Ru Series
