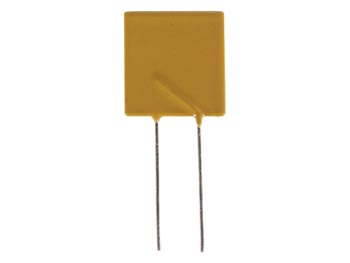

PTC genskabende sikring - 1.85-3.7A / 30VDC
Varenr:
H15560
EAN:
5410329214777
The PTC resistor resets automatisk og protects your circuit permanently.
Egenskaber:
- Low resistance
- High hold strøm
- Solid state
- Radial leads
Tekniske detaljer:
- Hold strøm Ih (A): 1.85
- Trip strøm It (A): 3.70
- Maks. time til trip (at 5 x Ih): 8.7
- Maks. strøm Imax (A): 40
- Specificeret spænding Vmax (Vdc): 30
- Typ. effekt Pd (W) : 1.0
- Resistance tolerance:
- Rmin (ohm): 0,030
- Rmaks. (1 hour after tripping) (ohm): 0,09
- Størrelse:
- A (max): 10,2
- B (max): 15.7
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.0
- F (typ): 0.9
- Operating strøm: 900mA ~9.0A
- Maks. strøm: 40A
- Maks. spænding: 30V
- Operationel temperatur: -40°C til +85°C
- Materialer:
- Leads: tin-plated copper
- Insulating: flame-retardant epoxy, meets requirement UL-94V-O
Også kendt som: Ptc Resettable Fuses With Radial Leads > Ru Series
