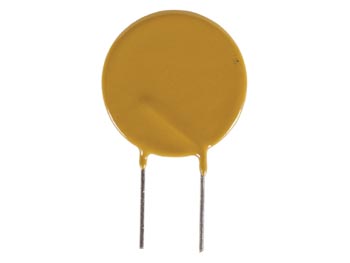

PTC genskabende sikring - 1,35-2,7A / 60VDC
Varenr:
H15576
EAN:
5410329214272
PTC modstanden nulstiller automatisk og beskytter dit kredsløb.
Egenskaber:
- Lav hold strøm
- Solid state
- Radial leads
Tekniske detaljer:
- Hold strøm Ih (A): 1.35
- Trip strøm It (A): 2.70

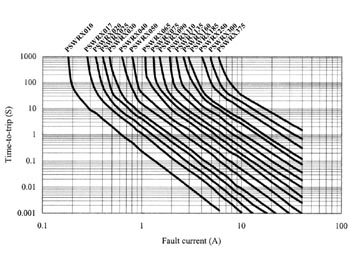

- Maks. time til trip (at 5 x Ih): 9.6
- Maks. strøm Imax (A): 40
- Specificeret spænding Vmax (Vdc): 60
- Typ. effekt Pd (W): 1.70
- Resistance tolerance:
- Rmin (ohm): 0.12
- Rmaks. (1 hour after tripping) (ohm): 0.30

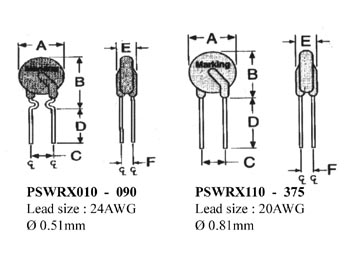

- Størrelse:
- A (max): 14.5
- B (max): 19.6
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.1
- F (typ): 1.4
- Operating strøm: 100mA ~3.75mA
- Maks. strøm: 40A
- Maks. spænding: 60V

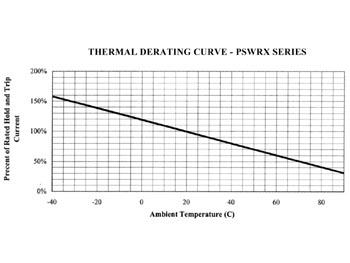

- Operationel temperatur: -40°C til +85°C
- Materialer:
- Leads: tin-plated copper
- Isolation: flame-retardant epoxy, meets requirement UL-94V-O
Også kendt som: Ptc Resettable Fuses With Radial Leads > Rx Series
The PTC resistor resets automatisk og protects your circuit permanently.
Egenskaber:
- Low hold strøm
- Solid state
- Radial leads
Tekniske detaljer:
- Hold strøm Ih (A): 1.35
- Trip strøm It (A): 2.70
- Maks. time til trip (at 5 x Ih): 9.6
- Maks. strøm Imax (A): 40
- Specificeret spænding Vmax (Vdc): 60
- Typ. effekt Pd (W): 1.70
- Resistance tolerance:
- Rmin (ohm): 0.12
- Rmaks. (1 hour after tripping) (ohm): 0.30
- Størrelse:
- A (max): 14.5
- B (max): 19.6
- C (typ): 5.1
- D (min): 7.6
- E (max): 3.1
- F (typ): 1.4
- Operating strøm: 100mA ~ 3.75mA
- Maks. strøm: 40A
- Maks. spænding: 60V
- Temperaturområde: -40°C til +85°C
- Materialer:
- Leads: tin-plated copper
- Isolation: flame-retardant epoxy, meets requirement UL-94V-O
Også kendt som: Ptc Resettable Fuses With Radial Leads > Rx Series
