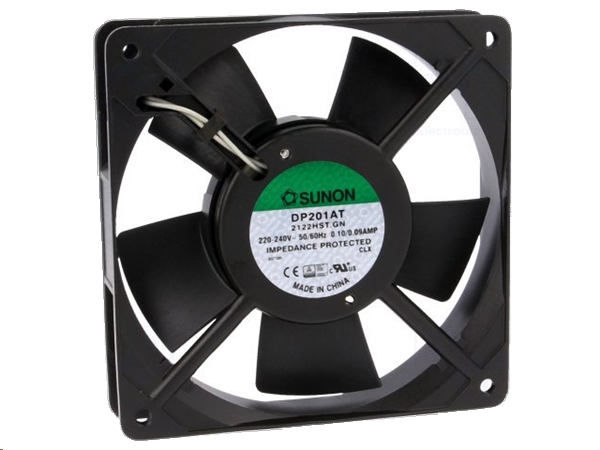

AC blæser - 120x120x25mm 230V / 19W, glideleje
Varenr:
H16412
EAN:
5410329455347
Tekniske detaljer:
- Producent (varemærke): SUNON
- Type ventilator: AC, aksial
- Forsyningsspænding: 230Vac
- Størrelse: 120x120x25mm
- Effekt: 19W
- Strømforbrug: 90mA
- Luftflow: 109 (±7%) m3/h
- Støjniveau: 43dBA
- Leje: Glideleje
- Rotationshastighed: 2000 omdr./min
- Vægt: 330g
- Frekvens: 50Hz
- Min. isoleringsmodstand: 500Mohm
- Propelmateriale: Termoplast
- Kabinetmateriale: Aluminium
- Isoleringsklasse: B
- Kabler: 2,8x0,3mm stik
- Operationel temperatur: -10...70°C
- Statisk tryk: 3,3mm H2O
- Antændelighedsklasse: UL94V-0
Tekniske detaljer:
- Manufacturer: SUNON
- Type of fan: AC
- Kind of fan: axial
- Supply voltage: 230V AC
- Fan dimensions: 120x120x25mm
- Power consumption: 19W
- Current rating: 90mA
- Fan efficiency: 109 (±7%)m3/h
- Noise level: 43dBA
- Kind of Bearing: slide bearing
- Rotational rate/speed: 2000rpm
- Weight: 330g
- Current and power consumption tolerance: ±15%
- Frequency: 50Hz
- Min. insulation resistance: 500Mohm
- Impeller material: thermoplastic
- Enclosure material: aluminium
- Insulation class: B
- Leads: 2,8x0,3mm connectors
- Operating temperature: -10...70°C
- Static pressure: 3.3mm H2O
- Flammability rating: UL94V-0
