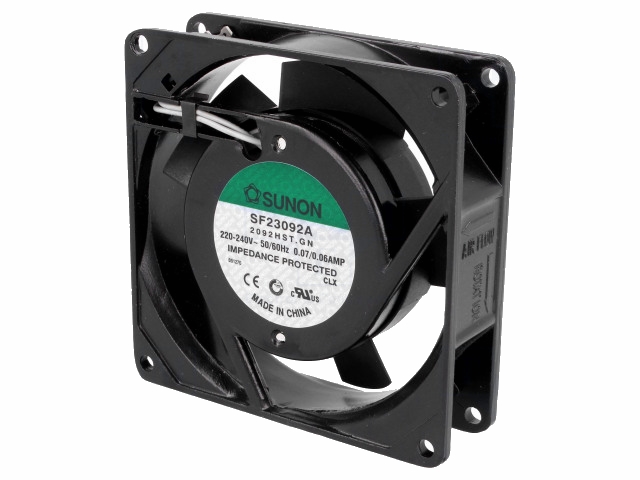

AC blæser - 92x92x25mm 230V m. glideleje
Varenr:
H16433
EAN:
5410329270551
Tekniske detaljer:
- Producent (varemærke): SUNON
- Type ventilator: AC, aksial
- Forsyningsspænding: 230Vac
- Ventilatormål: 92x92x25mm
- Strømforbrug: 14,5W
- Strøm: 70mA
- Luftflow: 49 (±7%) m3/t
- Støjniveau: 36dBA
- Lejetype: Glideleje
- Rotationshastighed: 2250 rpm
- Vægt: 280g
- Strømforbrugstolerance: ±15%
- Frekvens: 50Hz
- Min. isoleringsmodstand: 500Mohm
- Propelmateriale: Termoplast
- Kabinetmateriale: Aluminium
- Isoleringsklasse: B
- Tilslutning: 2,8x0,3mm
- Operationel temperatur: -10...70°C
- Statisk tryk: 3.05mm H2O
- Brandklasse: UL94V-0
Specifications:
- Manufacturer: SUNON
- Type of fan: AC
- Kind of fan: Axial
- Supply voltage: 230V AC
- Fan dimensions: 92x92x25mm
- Power consumption: 14.5W
- Current rating: 70mA
- Fan efficiency: 49 (±7%)m3/h
- Noise level: 36dBA
- Kind of Bearing: Slide bearing
- Rotational rate/speed: 2250rpm
- Weight: 280g
- Current and power consumption tolerance: ±15%
- Frequency: 50Hz
- Min. insulation resistance: 500MO
- Impeller material: Thermoplastic
- Enclosure material: Aluminium
- Insulation class: B
- Leads: 2,8x0,3mm
- Operating temperature: -10...70°C
- Static pressure: 3.05mm H2O
- Flammability rating: UL94V-0
