HF-drosselspole - 10uH, 370mA 0,72ohm
Varenr:
H17538
EAN:
5410329252854

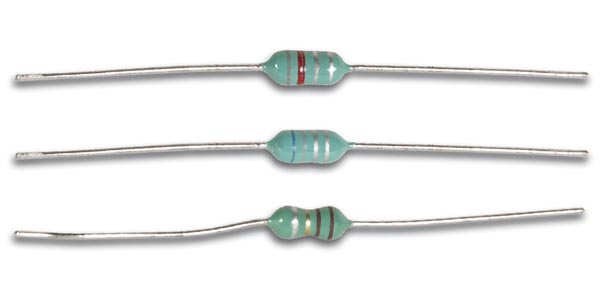

BC (bobbin core) chokes are HF chokes with a copper-wire winding on a special ferrite drum core. The plastic sleeve is flame-retardant. Color coding is achieved by using rings in accordance with IEC publication 62. The chokes are available on one-piece tapes (suitable for automatic assembly).
Tekniske detaljer:
- Induktans: 10µH
- Tolerance: 10%
- Specificeret strøm: 370mA
- Modstand: 0,72 Ohm
- Husstørrelse: Ø3 x 8mm
- Benstørrelse: Ø0,55 x 27mm
