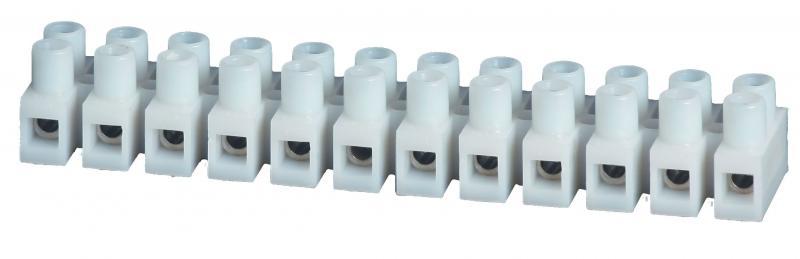

Klemrække m. bladfjeder - 12 x 1,5mm², 450V/17,5A, Hvid
Varenr:
H18624
EAN:
5705412186247
12 pol klemrække med bladfjeder ledningsbeskyttelse. Bladfjeder beskyttelsesfunktionen, en stålplade inde i stikket, gør trykket på skruen sikrere for lederen. Denne funktion er nyttig i situationer, hvor der er midlertidige afbrydelser af ledere eller hvor der er periodisk tryk, der kan bryde lederen. Ledernes materiale presses på et længere område og gør forbindelsen sikrere. Kan nemt klippes op i mindre segmenter.
Tekniske detaljer:
- Producent: SIMET
- Type stik: Klemme
- Variant: Med bladfjeder ledningsbeskyttelse
- Mekanisk montage: Panel via monteringshuller
- Elektrisk montage: Skrueterminaler
- Antal poler: 12
- Antal terminaler: 24
- Maks. ledertværsnit: 1,5mm²
- Farve: Hvid
- Maks. spænding: 450V
- Maks. strøm: 17,5A
- Husmateriale: Polyamid
- Operationel temperatur: -25...125°C
- Længde: 96,2mm
- Bredde: 17mm
- Højde: 14,5mm
- Terminalafstand: 8mm
- Monteringshul: Ø2,6mm
- Afisoleret lederlængde: 5mm
Også kendt som: Kronmuffe, rækkeklemme, terminal block, terminal strip.
12 ways screw terminal block with with leaf spring wire protectors. The distinctive wire protector feature, a steel plate that is inside the connector, makes the pressure of the screw safer for the conductor. This feature is useful in situations when there are temporary disconnections of conductors or where it is not possible to control the clamp for a long time. This connector is also useful in places where there is periodical pressure that might break the conductor. The material of the conductor is pressed on a longer area and makes the connection safer. May be easily broken into smaller fragments.
Specifications:
- Manufacturer: SIMET
- Type of connector: terminal block
- Connector variant: with wire protector
- Mechanical mounting: for panel mounting, for cable, mounting holes
- Electrical mounting: screw terminal
- Number of ways: 12
- Max. wire cross section: 1,5mm²
- Number of terminals: 24
- Colour: White
- Rated voltage: 450V
- Current rating: 17,5A
- Body material: Polyamide
- Operating temperature: -25...100°C
- Length: 96,2mm
- Width: 17mm
- Height: 14,5mm
- Terminal pitch: 8mm
- Stripped wire length: 5mm
