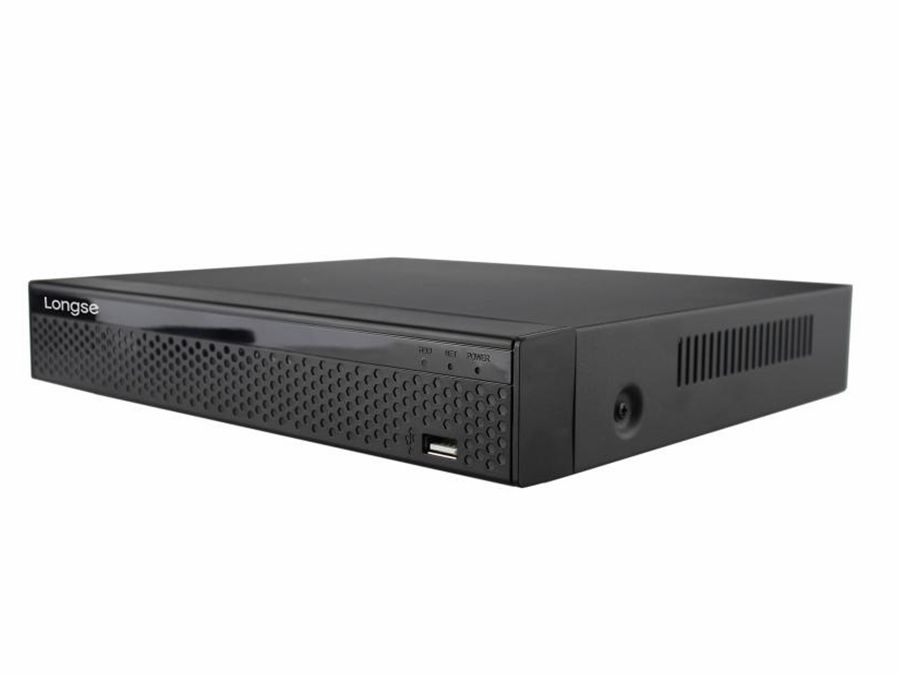

HD CCTV Hybridoptager - 4 kanal (TVI/CVI/AHD/Analog/IP) 5MP

HD CCTV Hybridoptager - 4 kanal (TVI/CVI/AHD/Analog/IP) 5MP

Varenr: H19922

EAN: 5705412199223

CCTV hybrid optager til overvågningsoptagelse. Du kan tilslutte et hvilket som helst TVI / CVI / AHD / Analog og IP-kamera, og optageren registrerer automatisk typen af tilsluttede kameraer (vi anbefaler TVI-kameraer, se tilbehør). Understøtter meget høj optagelsesopløsning op til 5MP. Monter blot en standard 3,5" eller 2,5" SATA harddisk (se tilbehør) og vælg dine optagelsespræferencer. Så har du en professionel og pålidelig CCTV-optagelsesløsning, som sender alarm-push-beskeder til din smartphone, når en (bevægelsesdetektering) alarm udløses.

Denne harddiskoptager har alle de grundlæggende funktioner, der er nødvendige for hjemmeovervågning, og som noget nyt også AI funktion for intelligent menneskedetektion. Den er også perfekt til mindre virksomheder, der leder efter en enkel og prisvenlig overvågningsløsning.

Egenskaber:

Understøtter AHD/CVI/TVI/IP/analog kameraindgang
Op til HD 5MP og IP 5MP opløsning Optagelse
Understøtter HD- og VGA-videoudgang
Support Maks. 4CH HD eller 9CH IP kameraindgang
Understøtter 1 SATA op til 8TB kapacitet

Tekniske detaljer:

System:
- Hovedprocessor: MC6630
- Operativsystem: Embedded LINUX
Video:
- Signaltype: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Netværk
- Indgangssignalkapacitet:
  - Normal analog tilstand: 4 x (TVI / AHD: 5M ved 12fps; AHD / TVI / CVI: 4M ved 15fps; AHD/TVI/CVI: 1080P/720P ved 30fps; Analog: 960H)
  - Analog + netværkstilstand: 2 x Analog (TVI / AHD: 5MP) + 4 x IP kam. (maks. 5 MP)
  - Ren netværkstilstand: 9 x IP kam. (5MP / 4MP / 3MP / 1080P / 960P / 720P - Samlet indgående båndbredde <= 48M)
- Indgangsstik: 4CH BNC
- Udgang: 1HD, 1 VGA
Lyd:
- Indgang: 1 kanal, RCA
- To-vejs lyd: Nej
- Udgang: 1 kanal, RCA
Alarm:
- Sensorindgang: Nej
- Udgang: Nej
- Bevægelsesdetektering: 4 kanaler (maks. 9 kanaler i ren netværkstilstand)
- Triggerhændelser: Optagelse, e-mail, skærmtips, buzzer, push-meddelelser (bevægelsesdetektion)
- E-mailalarm: Send billede til den udpegede e-mail
AI funktion:
- Menneske detektion: Ja
Skærm:
- VGA-opløsning: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HD-udgangsopløsning: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Display Split: 9/8/4/1 kanaler
- Privatlivsmaskering: 3 rektangulære zoner (hvert kamera)
- OSD: Kameratitel, Tid, Videotab, Alarm, Bevægelsesdetektering, Optagelse
Optagelse:
- Videokomprimering: H.265/H.264
- Lydkomprimering: G.711U/G.711A
- Opløsning: 5MP_Lite (1296×1952), 4MP_Lite (1280×1440), 1080N (960×1080), 720P (1280×720), 960H (960×480)
- Videokvalitet: Laveste/Lav/Almindelig/God/Bedre/Bedst
- Rekordrate:
  - Analog PAL: 5MP_Lite (1296×1944 4*8fps), 4MP_Lite (1280×1440 4*15fps), 3MP_Lite (1024×1536 4*18fps), 1080N (960x1080 4*80fps), 1080N (960x1080 4*80fps), 720fps , 960H (960×480 4*25fps)
  - Ren IP (H.265) PAL: 5MP@8×25fps, 4MP@9x25fps, 3MP@9×25fps, 1080P@9×25fps, 960P@9×25fps, 720P@9×25fps,D1@9×25fps
- Optagetilstand: Manuel\Timer\Bevægelsesdetektion\Intelligent
Afspilning og sikkerhedskopiering:
- Afkodningsevne: 2 x 1080P@30fps
- Synkroniser afspilning:
  - Ren analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
  - Blandingstilstand: 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
  - Rent netværk: 4CH*720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
- Fjernafspilning: 4 kanaler / 1 kanal
- Søgetilstand: ALLE, Kanal, Manuel, Tid, Dato, Bevægelsesdetektering, Menneskelig detektion, Tag
- Afspilningsfunktioner: Afspil, Pause, Stop, Hurtig afspilning, Langsom afspilning, Spol tilbage, Enkelt billede frem/tilbage, Digital Zoom, Fuld skærm
- Smart Phone-afspilning: 4-kanals
- Sikkerhedskopieringstilstand: USB-enhed (med format FAT 32 ) / Netværk / FTP
Netværk:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Netværksfunktioner: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
- Webbrowser: IE8-11, Google Chrome (lavere end Ver44), Firefox (lavere end Ver53)
- CMS-software: Understøtter Windows 7/8/10/11 og Mac OS
- Ekstra stream: CIF/D1 (1~25fps)
- Smartphone: iPhone, Android
Harddisk driver:
- Interface Type: 1 x SATA
- Kapacitet: 1 x SATA-harddisk (2,5"/3,5" SATA, op til 8TB, se tilbehør)
Generel:
- Sprog: engelsk, forenklet kinesisk, traditionel kinesisk, polsk, tjekkisk, russisk, thai, hebraisk, arabisk, bulgarsk, japansk, tysk, fransk, portugisisk, tyrkisk, spansk, italiensk, ungarsk, rumænsk, koreansk, hollandsk, græsk, vietnamesisk
- UTC-kontrol: Ja
- USB-interface: 2 x USB 2.0
- Strømforsyning: 12Vdc / 2A (adapter inkluderet)
- Operationel temperatur: -10...55°C
- Driftsfugtighed; 10...90 %
- Mål (B×D×H): 260x213x43mm
- Vægt: 870g (Uden HDD)

CCTV hybrid recorder for surveillance recording. You can connect any TVI / CVI / AHD / Analog and IP camera, and the recorder automatically detects the type of cameras connected (we recommend TVI cameras, see accessories). Supports Very high recording resolution up to 5MP. Just mount a standard 3.5" or 2,5" SATA HDD (see accessories) and select your recording preferences. Then you will have a professional and reliable CCTV recording solution which will send alarm push-messages to your smartphone when a (motion detection) alarm is triggered.

This hard disk recorder has all the basic functions needed for home surveillance, and as something new AI function for intelligent human detection. It is also perfect for small businesses looking for a simple and price attractive surveilance solution.

Features:

Support AHD/CVI/TVI/IP/Analog Camera Input
Up to HD 5MP and IP 5MP Resolution Recording
Support HD and VGA Video Output
Support Max. 4CH HD or 9CH IP Camera Input
Support 1 SATA up to 8TB Capacity

Specifications:

System:
- Main Processor: MC6630
- Operating System: Embedded LINUX
Video:
- Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Input signal capacity:
  - Normal analog mode: 4 x (TVI / AHD: 5M ved 12fps; AHD / TVI / CVI: 4M ved 15fps; AHD/TVI/CVI: 1080P/720P ved 30fps; Analog: 960H)
  - Analog + network mode: 2 x Analog (TVI / AHD: 5MP) + 4 x IP kam. (maks. 5MP)
  - Pure network mode: 9 x IP kam. (5MP / 4MP / 3MP / 1080P / 960P / 720P - Samlet indgående båndbredde <= 48M)
- Input connectors: 4CH BNC
- Output: 1HD, 1 VGA
Audio:
- Input: 1 Channel, RCA
- Two-way Audio: No
- Output: 1 Channel, RCA
Alarm:
- Sensor Input: No
- Output: No
- Motion Detection: 4 channel (max 9 channel in pure network mode)
- Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
- Email Alarm: Send Image to The Designated E-mail
AI funktion:
- Human detection: Yes
Display:
- VGA resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
- HD output resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
- Display Split: 9 / 8 / 4 / 1 channels
- Privacy Masking: 3 rectangular zones (each camera)
- OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording:
- Video Compression: H.265/H.264
- Audio Compression: G.711U/G.711A
- Resolution: 5MP_Lite (1296×1952), 4MP_Lite (1280×1440), 1080N (960×1080), 720P (1280×720), 960H (960×480)
- Video Quality: Lowest/Low/Ordinary/Good/Better/Best
- Record Rate:
  - Analog PAL: 5MP_Lite (1296×1944 4*8fps), 4MP_Lite (1280×1440 4*15fps) ,3MP_Lite (1024×1536 4*18fps), 1080N (960x1080 4*18fps), 720P (1280×720 4*20fps), 960H (960×480 4*25fps)
  - Pure IP (H.265) PAL: 5MP@8×25fps ,4MP@9x25fps, 3MP@9×25fps, 1080P@9×25fps, 960P@9×25fps, 720P@9×25fps,D1@9×25fps
- Record Mode: Manual\Timer\Motion Detection\Intelligent
Playback & Backup:
- Decode Capability: 2 x 1080P@30fps
- Sync Playback:
  - Pure Analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
  - Mixture mode: 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
  - Pure Network: 4CH*720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
- Remote Playback: 4 chanel / 1 Channel
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Human detection, Tag
- Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
- Smart Phone Playback: 4 Channel
- Backup Mode: USB Device (with fomat FAT 32 ) / Network / FTP
Network:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
- Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
- CMS Software: Support Windows 7/8/10/11 and Mac OS
- Extra Stream: CIF/D1(1~25fps)
- Smart Phone: iPhone, Android
Hard Disk Driver:
- Interface Type: 1 x SATA
- Capacity: 1 x SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB, see accessories)
General:
- Language: English, Simplified Chinese,Traditional Chinese, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
- UTC Control: Yes
- USB Interface: 2 x USB 2.0
- Power supply: 12VDC / 2A (adapter included)
- Operating temperature: -10...55°C
- Operating humidity; 10...90%
- Dimensions (W×D×H): 260 x 213 x 43mm
- Weight: 870 g (Without HDD)
