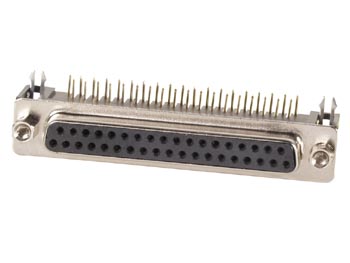

D-SUB fatning - 37pol hun, 90° til print
Varenr:
H20764
EAN:
5705412207645
Tekniske detaljer:
- Producent (varemærke): CONNFLY
- Type stik: D-Sub
- Antal ben: 37
- Variant: Fatning (hun)
- Orientering: Vinklet 90°
- Elektrisk montage: Printhul
- Gevind: UNC4-40
- Låsesystem: skruer
- Stikvariant: 7,2mm standard
- Strøm: 5A
- Maks. kontaktmodstand: 15mOhm
- A dimension: 55mm
- B-dimension: 63mm
- C dimension: 69mm
- Operationel temperatur: -55...105°C
Specifications:
- Manufacturer: CONNFLY
- Type of connector: D-Sub
- Number of pins: 37
- Connector: Socket
- Kind of connector: Female
- Spatial orientation: Angled 90°
- Electrical mounting: THT
- Thread: UNC4-40
- Locking system: Screws
- Connector variant: 7,2mm standard
- Current rating: 5A
- Max. contact resistance:: 15mΩ
- A dimension: 55mm
- B dimension: 63mm
- C dimension: 69mm
- Operating temperature: -55...105°C
