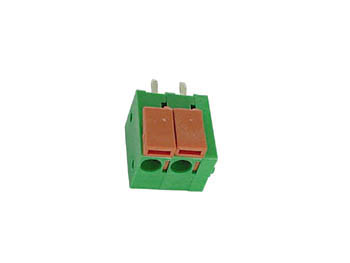

Skrueløs terminal - 2pol, 5mm benafstand (4 ben), Grøn

Features:

• These screwless terminals are suitable for both solid og flexible conductors
• A spring made of stainless strip steel guarantees permanent og safe contact
• Operation by pushing the lever with a screwdriver (this lever is fully integrated in the body)
• Equipped with a cover for easy manual adjustment
• Blocks are stackable

Specifications:

• Type: Screwless push-button PCB terminal block
• No. of contacts: 2
• Contact pitch: 5mm
• Electrical mounting: PCB (4 pins)
• Insulated body lever, cover: glass-filled polyester (UL94VO)
• Wire cross section: 0,6...1,5mm² (20-18AWG)
• Contact material: Brass (CuZn)
• Contact plating: Tinned
• Current rating: 15A, 300Vac / way
• Insulation withstand spænding: 2000Vac min.
• Isolationsmodstand: 500Mohm (at 5000Vdc)
• Operationel temperatur: -33°C til +120°C
• Soldering temperature: +250°C, 5 sek. maks.
• Color: Green/orange

Also known as: Terminal Blocks > Screwless Terminal Blocks, Quick-clamp Type, Pitch = 5mm
