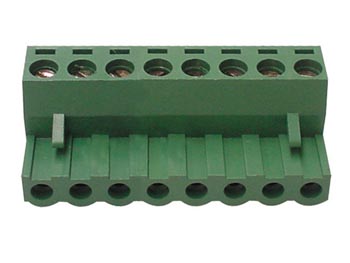

Indstik Skrueterminal - 8P hun, 5mm 300V/12A
Varenr:
H21349
EAN:
5410329276935
Tekniske detaljer:
- Producent (varemærke): NINIGI
- Stiktype: Skrueterminalstik
- Kontaktafstand: 5mm
- Antal ben: 8
- Benkonfiguration: 1x8
- Orientering: lige
- Køn: Hun
- Mekanisk montage: til kabel
- Elektrisk montage: Skrueterminal
- Maks. trådtværsnit: 2,5mm²
- Farve: Grøn
- Låsesystem: Friktionslås
- Mærkespænding: 300V
- Mærkestrøm: 12A
- Husmateriale: Polyamid
- Antændelighedsklasse: UL94V-0
- Operationel temperatur: -40...120°C
- Kontaktmateriale: Messing
- Kontaktplettering: Fortinnet
- Højde: 15,2mm
- Dybde: 17,7mm
- Længde: 40,64mm
- Afisoleret trådlængde: 8mm
Specifications:
- Manufacturer: NINIGI
- Type of connector: pluggable terminal block
- Contacts pitch: 5mm
- Number of ways: 8
- Type of pin configuration: 1x8
- Spatial orientation: straight
- Connector: plug
- Kind of connector: female
- Mechanical mounting: for cable
- Electrical mounting: screw terminal
- Wire cross section: 2.5mm2
- Colour: green
- Locking system: latch
- Rated voltage: 300V
- Current rating: 12A
- Body material: polyamide
- Flammability rating: UL94V-0
- Contact plating: tinned
- Operating temperature: -40...120°C
- Contact material: brass
- Height: 15.2mm
- Depth: 17.7mm
- Length: 40.64mm
- Stripped wire length: 8mm
