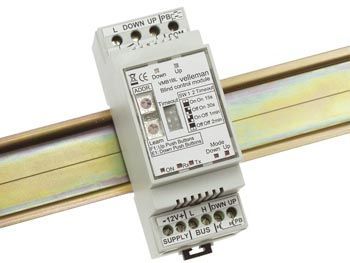

VELBUS - Rullegardin kontrolmodul

Egenskaber:

• Can be used til control an electric roll-down shutter, sunblind...
• Suppressed relay contacts
• Manual control on the module
• Controllable by connecting several push buttons in parallel
• Controllable trough VELBUS
• Programmable without PC
• Simple learning process
• Learned push buttons will be saved in case of effekt failure
• Reporting towards the control modules
• 252 possible addresses
• LED indications for:
  • UP og DOWN relay output
  • UP og DOWN control modes
  • Power spænding
  • Data reception og forwarding through VELBUS

Tekniske detaljer:

• 4 possible switching times : 15s - 30s - 1min - 2 min
• Relay contacts: 5A/230Vac maks.
• Push button input debounce: 65ms
• Forsyningsspænding: 12VDC
• Strømforbrug: 70mA
• Standard DIN rail housing: 2 modules
• Størrelse: 90 x 36 x 58mm, vægt: 110g
