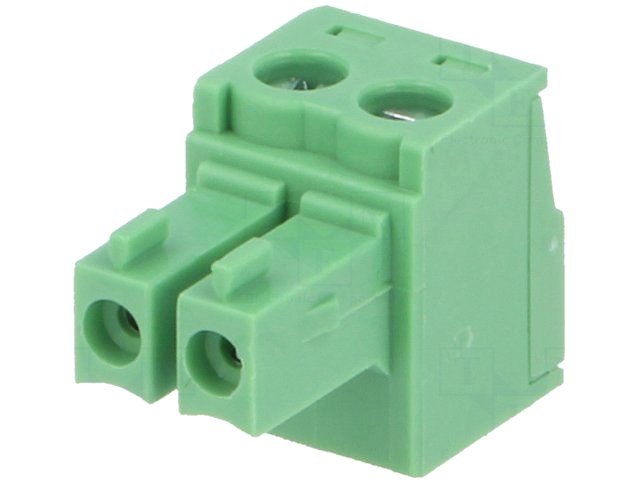

Indstik skrueterminal - 2P hun 3,81mm 0,5-1,5mm², Grøn
Varenr:
H23321
EAN:
5705412233217
Tekniske detaljer:
- Producent (varemærke): DEGSON ELECTRONICS
- Type stik: Indstik skrueterminal
- Variant: Hunstik
- Benafstand: 3,81mm
- Antal terminaler: 2
- Benkonfiguration: 1x2
- Orientering: lige
- Mekanisk montage: Til kabel
- Elektrisk montage: skrueterminal
- Ledningsstørrelse: 0,5 ... 1,5mm2 (28 ... 16AWG)
- Farve: grøn
- Låsesystem: friktionslås
- Maks. spænding: 250V
- Strøm: 7A
- Husmateriale: PA66
- Brandbarhed: UL94V-0
- Overholder: CE, UL, VDE
- Operationel temperatur: -40 ... 105°C
- Kontaktmateriale: Fosforbronse
God erstatning for: MC 1,5/ 2-ST-3,81 1803578.
Tekniske detaljer:
- Manufacturer: DEGSON ELECTRONICS
- Type of connector: pluggable terminal block
- Version: Female
- Contacts pitch: 3,81mm
- Number of terminals: 2
- Pin configuration: 1x2
- Spatial orientation: straight
- Connector: plug
- Mechanical mounting: for cable
- Electrical mounting: cage clamp, screw terminal
- Wire cross section: 0,5...1,5mm2 (28...16AWG)
- Colour: green
- Locking system: friction lock
- Rated voltage: 250V
- Current rating: 7A
- Body material: PA66
- Flammability rating: UL94V-0
- Conform to the norm: CE, UL, VDE
- Operating temperature: -40...105°C
- Contact material: phosphor bronze
