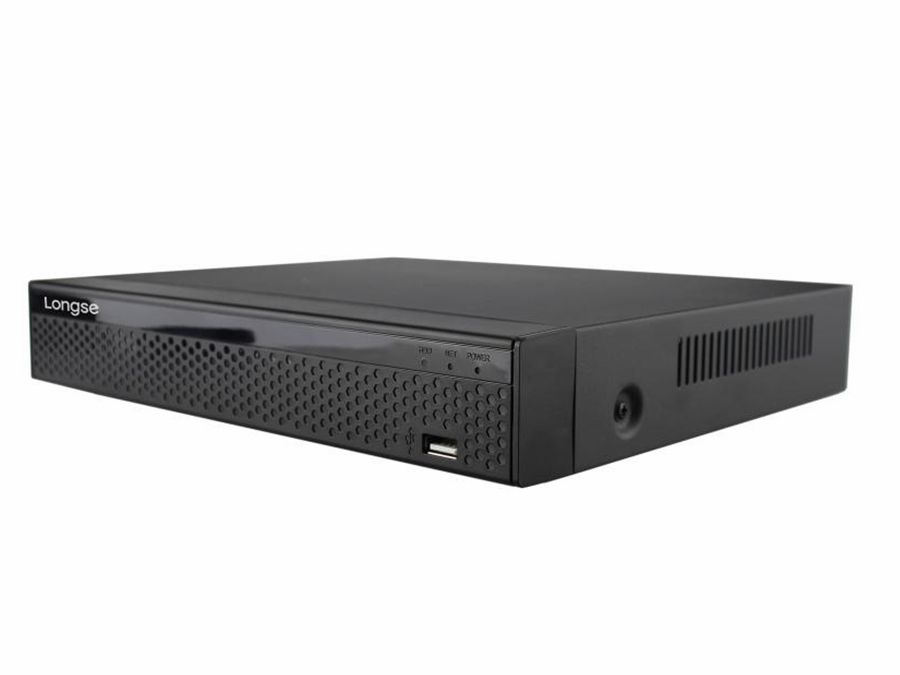

HD CCTV Hybridoptager - 8 kanal (TVI/CVI/AHD/Analog/IP) 5MP

HD CCTV Hybridoptager - 8 kanal (TVI/CVI/AHD/Analog/IP) 5MP

Varenr: H23372

EAN: 5705412233729

CCTV XVR hybridoptager til overvågningsoptagelse. Du kan tilslutte ethvert TVI / CVI / AHD / analogt og IP-kamera, og optageren registrerer automatisk typen af tilsluttede kameraer (vi anbefaler TVI-kameraer, se tilbehør). Understøtter meget høj optagelsesopløsning op til 5MP. Montér blot en standard 3,5" eller 2,5" SATA HDD (se tilbehør), og vælg dine optagelsesindstillinger. Derefter vil du have en professionel og pålidelig CCTV-optageløsning, der sender alarm-push-beskeder til din smartphone, når en (bevægelsesdetektering) alarm udløses.

Denne harddisk-optager har alle de essentiele funktioner, som der er brug for i videoovervågnings-installationer, , og som noget nyt også AI funktion for intelligent menneskedetektion. Den er ideel såvel til større private installationer samt til små og mellemstore virksomheder, som søger en enkel og prisattraktiv overvågningsløsning.

Egenskaber:

Understøtter AHD / CVI / TVI / IP / Analog kameraindgang
Optagelse i opløsning op til HD 5MP og IP 5MP
Understøtter HD og VGA-videoudgang
Understøtter maks. 8-kanal analog HD eller 16-kanal IP-kameraindgang
Understøtter 1 SATA disk med op til 8TB kapacitet

Tekniske detaljer:

System:
- Hovedprocessor: MC6630
- Operativsystem: Integreret LINUX
Video:
- Signaltype: Analog / AHD / CVI / TVI 2.0 / TVI 3.0 / Netværk
- Indgangssignal (kamera) kapacitet:
  - Normal analog tilstand: 8 x (TVI/AHD: 5M ved 12fps; AHD/TVI/CVI: 4M ved 15fps; AHD/TVI: 3M ved 18fps; AHD/TVI/ CVI: 1080P / 720P; Analog: 960H)
  - Analog + netværkstilstand: 2 x Analog (5M) + 7 x IP kam. (maks. 5MP), 4 x Analog (5MP) + 5 x IP kam. (maks. 5MP), 6 x Analog (5MP) + 3 x IP kam. (maks. 5MP)
  - Netværkstilstand: 16 x IP kam. (5MP / 4MP / 3MP / 1080P / 960P / 720P - Samlet indgående båndbredde <=48M)
- Indgangsstik: 8 x BNC, 1 x RJ45
- Udgang: 1 x HDMI, 1 x VGA, 1 x BNC (video komposit)
Lyd:
- Indgang: 2 kanal, RCA (understøtter AOC)
- Tovejs lyd: Nej
- Udgang: 1 kanal, RCA
Alarm:
- Sensorindgang: 4 kanaler
- Alarmudgang: 1 kanal
- Bevægelsesdetektion: 8 kanaler (maks. 16 kanaler i ren netværkstilstand)
- Triggerhændelser: Optagelse, e-mail, skærmtip, summer, push-underretninger (bevægelsesdetektering)
- E-mail-alarm: Send billede til den angivne e-mail
AI funktion:
- Menneske detektion: Ja
Skærm:
- VGA-opløsning: 1920 × 1080P / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
- HD-outputopløsning: 1920 × 1080P / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
- Display Split: 9 kanaler / 4 kanaler / 1 kanaler
- Privacy Masking: 3 rektangulære zoner (hvert kamera)
- OSD: Kameratitel, tid, videotab, alarm, bevægelsesregistrering, optagelse
Optagelse:
- Videokompression: H.265 / H.264
- Lydkompression: G.711U / G.711A
- Opløsning: 5MP_Lite (1296 × 1952), 4MP_Lite (1280 × 1440), 3MP_Lite (1024 × 1536), 1080N (960 × 1080), 720P (1280 × 720), 960H (P: 960 × 576 / N: 960 × 480 )
- Videokvalitet: Lavest / Lav / Almindelig / God / Bedre / Bedst
- Optagelseshastighed:
  - Analog PAL: 5MP_Lite (1296 × 1944 4 * 8fps), 4MP_Lite (1280 × 1440 4 * 15fps), 3MP_Lite (1024 × 1536 4 * 18fps), 1080N (960x1080 4 * 18fps), 720P (1280 × 720 4 * 20fps) , 960H (960 × 480 4 * 25fps)
  - Ren IP (H.265) PAL: 5MP ved 8 × 25fps, 4MP ved 9x25fps, 3MP ved 9 × 25fps, 1080P ved 9 × 25fps, 960P ved 9 × 25fps, 720P ved 9 × 25fps, D1 ved 9 × 25fps
- Optagetilstand: Manuel \ Timer \ Bevægelsesregistrering
Afspilning og sikkerhedskopiering:
- Afkode kapacitet: 2kanal 1080P ved 30fps
- Synkroniser afspilning:
  - Ren analog: 4CH 960H ved 25fps, 2CH 720P ved 20fps, 2CH 1080N ved 18fps, 1CH 5M_LITE ved 8fps, 1CH 4M_LITE ved 15fps, 1CH 3M_LITE ved 18fps
  - Blandingstilstand: 4CH 720P ved 25fps, 2CH 1080P ved 25fps, 1CH 5M_LITE ved 8fps, 1CH 4M_LITE ved 15fps, 1CH 3M_LITE ved 18fps
  - Rent netværk: 4CH * 720P ved 25fps, 2CH 1080P ved 25fps, 1CH 5MP ved 25fps
- Fjernafspilning: 1 kanal
- Søgningstilstand: ALLE, Kanal, Manuel, Tid, Dato, Bevægelsesregistrering
- Afspilningsfunktioner: Afspil, Pause, Stop, Hurtig afspilning, Langsom afspilning, Spol tilbage, Enkelt billede fremad / tilbage, Digital zoom, Fuld skærm
- Smartphone afspilning: 4 kanaler
- Backup-tilstand: USB-enhed (med fomat FAT 32) / Netværk / FTP
Netværk:
- Interface: 1 x RJ45 10M / 100M adaptivt Ethernet-interface
- Netværksfunktioner: TCP / IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN
- Webbrowser: IE8-11, Google Chrome, Firefox, Safari, Edge
- CMS-software: Understøtter Windows 7/8/10
- Ekstra stream: CIF / D1 (1 ~25 fps)
- Smartphone: iPhone, iPad, Android, Android pad
Harddiskdriver:
- Interface type1 SATA-interface
- Kapacitet: 1 x SATA-harddisk (2,5 "/ 3,5" SATA, op til 8 TB, se tilbehør)
Generel:
- Sprog: engelsk, forenklet kinesisk, traditionel kinesisk, polsk, tjekkisk, russisk, thai, hebraisk, arabisk, bulgarsk, japansk, tysk, fransk, portugisisk, tyrkisk, spansk, italiensk, ungarsk, rumænsk, koreansk, hollandsk, græsk, vietnamesisk
- UTC-kontrol: Ja
- USB-interface: 2 x USB 2.0
- Strømforsyning: 12Vdc / 2A (adapter inkluderet)
- Operationel temperatur: -10...55°C
- Operationel luftfugtighed: 10...90%
- Størrelse (B × D × H): 260x215x43mm
- Vægt: 860g (uden harddisk)

CCTV hybrid recorder for surveillance recording. You can connect any TVI / CVI / AHD / Analog and IP camera, and the recorder automatically detects the type of cameras connected (we recommend TVI cameras, see accessories). Supports Very high recording resolution up to 5MP. Just mount a standard 3.5" or 2,5" SATA HDD (see accessories) and select your recording preferences. Then you will have a professional and reliable CCTV recording solution which will send alarm push-messages to your smartphone when a (motion detection) alarm is triggered.

This hard disk recorder has all the basic functions needed for home surveillance, and as something new AI function for intelligent human detection. It is also perfect for small businesses looking for a simple and price attractive surveilance solution.

Features:

Support AHD/CVI/TVI/IP/Analog Camera Input
Up to HD 5MP and IP 5MP Resolution Recording
Support HD and VGA Video Output
Support Max. 8CH HD or 16CH IP Camera Input
Support 1 SATA up to 8TB Capacity

Specifications:

System:
- Main Processor: MC6630
- Operating System: Embedded LINUX
Video:
- Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Input signal capacity:
  - Normal Analog mode: 8 x (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M@18fps; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
  - Analog + network mode: 2 x Analog (5M) + 7 x IP cam. (max. 5MP), 4 x Analog (5MP) + 5 x IP cam. (max. 5MP), 6 x Analog (5MP) + 3 x IP cam. (max. 5MP)
  - Network mode: 16 * 5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth <=48M)
- Input connectors: 8CH BNC
- Output: 1HD, 1 VGA, CVBS
Audio:
- Input: 2 Channel, RCA (supports AOC)
- Two-way Audio: No
- Output: 1 Channel, RCA
Alarm:
- Sensor Input: No
- Output: No
- Motion Detection: 8 channel (max 16 channel in pure network mode)
- Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
- Email Alarm: Send Image to The Designated E-mail
AI funktion:
- Human detection: Yes
Display:
- VGA resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
- HD output resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
- Display Split: 9 channel / 4 channel / 1 channel
- Privacy Masking: 3 rectangular zones (each camera)
- OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording:
- Video Compression: H.265/H.264
- Audio Compression: G.711U/G.711A
- Resolution: 5MP_Lite (1296×1952), 4MP_Lite (1280×1440), 3MP_Lite (1024×1536),1080N (960×1080), 720P (1280×720), 960H (P:960×576/N:960×480)
- Video Quality: Lowest/Low/Ordinary/Good/Better/Best
- Record Rate:
  - Analog PAL: 5MP_Lite (1296×1944 4*8fps), 4MP_Lite (1280×1440 4*15fps) ,3MP_Lite (1024×1536 4*18fps), 1080N (960x1080 4*18fps), 720P (1280×720 4*20fps), 960H (960×480 4*25fps)
  - Pure IP (H.265) PAL: 5MP@8×25fps ,4MP@9x25fps, 3MP@9×25fps, 1080P@9×25fps, 960P@9×25fps, 720P@9×25fps,D1@9×25fps
- Record Mode: Manual\Timer\Motion Detection
Playback & Backup:
- Decode Capability: 2CH 1080P@30fps
- Sync Playback:
  - Pure Analog: 4CH 960H@25fps, 2CH 720P@20fps, 2CH 1080N@18fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
  - Mixture mode: 4CH 720P@25fps, 2CH 1080P@25fps, 1CH 5M_LITE@8fps, 1CH 4M_LITE@15fps, 1CH 3M_LITE@18fps
  - Pure Network: 4CH*720P@25fps, 2CH 1080P@25fps, 1CH 5MP@25fps
- Remote Playback: 1 Channel
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
- Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
- Smart Phone Playback: 4 Channel
- Backup Mode: USB Device (with fomat FAT 32 ) / Network / FTP
Network:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
- Web Browser: IE8-11, Google Chrome, Firefox, Safari, Edge
- CMS Software: Support Windows 7/8/10/11 and Mac OS
- Extra Stream: CIF/D1(1~25fps)
- Smart Phone: iPhone, iPad, Android, Android pad
Hard Disk Driver:
- Interface Type1 SATA Interface
- Capacity: 1 x SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB, see accessories)
General:
- Language: English, Simplified Chinese,Traditional Chinese, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
- UTC Control: Yes
- USB Interface: 2 x USB 2.0
- Power supply: 12VDC / 2A (adapter included)
- Operating temperature: -10...55°C
- Operating humidity; 10...90%
- Dimensions (W×D×H): 260 x 215 x 43mm
- Weight: 860 g (Without HDD)
