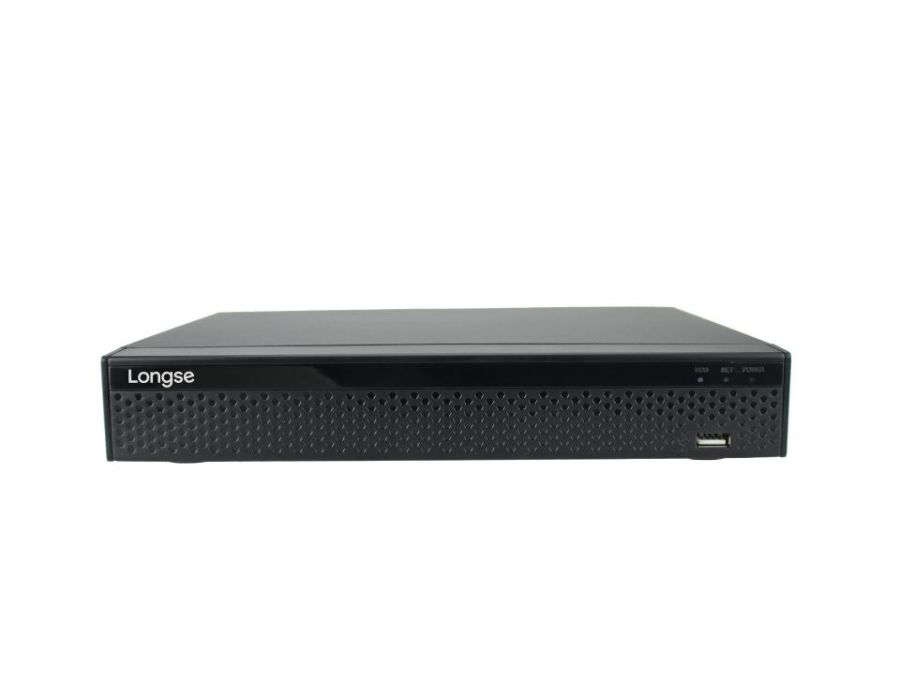

HD CCTV Hybridoptager - 16 kanal (TVI/CVI/AHD/Analog/IP) 5MP

Varenr: H23427

EAN: 5705412234276

CCTV XVR hybridoptager til videoovervågning. Du kan tilslutte ethvert TVI / CVI / AHD / analogt og IP-kamera, og optageren registrerer automatisk den type kameraer, der er tilsluttet (vi anbefaler TVI-kameraer, se tilbehør). Understøtter meget høj optagelsesopløsning på op til 5MP. Bare monter en standard 3,5" SATA HDD (se tilbehør) og vælg dine optagelsespræferencer. Derefter vil du have en professionel og pålidelig CCTV-optagelsesløsning, der sender alarm push-beskeder til din smartphone, når en (bevægelsesdetektering) alarm udløses.

Denne harddiskoptager har alle de professionelle funktioner, der er nødvendige overvågning i virksomheder, den er brugervenlig, driftsstabil og kommer til en særdeles attraktiv pris.

Egenskaber:

Understøtter AHD / CVI / TVI 2.0/TVI 3.0 / IP / analog kamerainput
Optager i op til HD 5MP og IP 5MP opløsning
Understøtter menneske genkendelse
Understøtter HDMI-, VGA- og komposit videoudgang
For tilslutning af op til 16 HD eller 16 IP kameraer (eller en kombination af de to typer)
Understøtter 2 x SATA HDD (op til 16 TB kapacitet)
Auto-genstart ved strømudfald

Tekniske detaljer:

System:
- Hovedprocessor: MC6650
- Operativsystem: Embedded LINUX
Video:
- Understøttede signaltyper: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Netværk
- Indgangssignalkapacitet:
  - Normal analog tilstand: 16 x (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
  - Analog + netværkstilstand: 2 x Analog (5MP) +14 x netværk (maks. 8MP), 4 x Analog (5MP) +12 x netværk (maks. 8MP), 6 x Analog (5MP) +10 x netværk (maks. 8MP), 8 x Analog (5MP) + 8 x netværk (maks. 8MP), 10 x Analog (5MP) + 6 x netværk (maks. 8MP), 12 x Analog (5MP) + 4 x netværk (maks. 8MP) , 14 x Analog (5MP) + 2 x netværk (maks. 8MP)
  - Netværkstilstand: 16 x 8MP/5MP/4MP/3MP/1080P/960P/720P (samlet indgående båndbredde <80M)
- Indgangsstik: 16CH BNC
- Udgangsstik: 1 x HDMI, 1 x VGA, 1 x CVBS
Lyd:
- Indgang: 6 -kanals RCA (understøtter AOC)
- To-vejs lyd: Nej
- Udgang: 1 kanal RCA
Alarm:
- Sensorindgange: 4
- Udgang: 1
- Bevægelsesregistrering: 16 kanaler
- Triggerhændelser: Optagelse, e -mail, skærmtip, summer, push -meddelelser (bevægelsesdetektering)
- E-mailalarm: Send billede til den angivne e-mail
AI function:
- Menneske detektion: Ja
PTZ:
- Grænseflade: RS485
- Protokol: Pelco-D, Pelco-P
- Baudrate: 110 ~921600
- Adresse: 0 ~255
Skærm:
- VGA -opløsning: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI-opløsning: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Display Split: 1/4/8/9/16
- Privacy Masking: 3 rektangulære zoner (hvert kamera)
- OSD: Kameratitel, Tid, Videotab, Alarm, Bevægelsesregistrering, Optagelse
Optagelse:
- Videokomprimering: H.265/H.265+/H.264/H.264+
- Lydkomprimering: G.711u / G.711a / AAC
- Opløsning: 5MP_Lite (1296 × 1952), 4MP_Lite (1280 × 1440), 3MP_Lite (1024 × 1536), 1080N (960 × 1080), 720P (1280 × 720), 960H (P: 960 × 576/N: 960 × 480 )
- Videokvalitet: Lavest/Lav/Almindelig/God/Bedre/Bedst
- Optagehastighed:
  - Analog PAL: 5MP_Lite (1296 × 1944 4*8fps), 4MP_Lite (1280 × 1440 4*15fps), 3MP_Lite (1024 × 1536 4*18fps), 1080N (960x1080 4*18fps), 720P (1280 × 720 4*20fps) , 960H (960 × 480 4*25fps)
  - Ren IP (H.265) PAL: 5MP@8 × 25fps, 4MP@9x25fps, 3MP@9 × 25fps, 1080P@9 × 25fps, 960P@9 × 25fps, 720P@9 × 25fps, D1@9 × 25fps
- Optagelsestilstand: Manuel \ Timer \ Bevægelsesregistrering
Afspilning og sikkerhedskopiering:
- Afkodningskapacitet: 4 x 1080P ved 30fps
- Synkroniser afspilning:
  - Ren analog: 16CH 960H@25fps, 16CH 720P@15fps, 16CH 1080N@15fps, 16CH 5M_LITE@6fps, 16CH 4M_LITE@8fps, 16CH 3M_LITE@10fps
  - Blandingstilstand: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
  - Rent netværk: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
- Fjern afspilning: 4 kanaler (1 kanal
- Søgetilstand: ALLE, Kanal, Manuel, Tid, Dato, Bevægelsesregistrering
- Afspilningsfunktioner: Afspilning, Pause, Stop, Hurtig afspilning, Langsom afspilning, Spol tilbage, Enkelt billede frem/tilbage, Digital zoom, Fuld skærm
- Smart telefonafspilning: 4 kanaler
- Backuptilstand: USB -enhed (med fomat FAT 32) / netværk / FTP
Netværk:
- Interface: 1 x RJ45 10M/100M adaptivt Ethernet -interface
- Netværksfunktioner: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
- Webbrowser: IE8-11, Google Chrome, Firefox
- CMS -software: Understøtter Windows 7/ 8/ 10/ 11
- Ekstra Stream: CIF/D1 (1 ~30fps)
- Smart Phone: iPhone, iPad, Android, Android pad
Harddisk driver:
- Interfacetype: 2 SATA -interface
- Kapacitet: 1 x SATA harddisk (2,5"/3,5" SATA, op til 16 TB, se tilbehør)
Generel:
- OSD sprogvalg: Engelsk, forenklet kinesisk, traditionel kinesisk, polsk, tjekkisk, russisk, thai, hebraisk, arabisk, bulgarsk, japansk, tysk, fransk, portugisisk, turkisk, spansk, italiensk, ungarsk, rumænsk, koreansk, hollandsk, græsk, vietnamesisk
- UTC -kontrol: Ja
- USB -interface: 2 x USB 2.0
- Strømforsyning: 12Vdc / 4A (netadapter medfølger)
- Operationel temperatur: -10...55°C
- Driftsfugtighed; 10...90%
- Størrelse (B × D × H): 310x295x46mm
- Vægt: 4kg (uden HDD)

CCTV hybrid recorder for surveillance recording. You can connect any TVI / CVI / AHD / Analog and IP camera, and the recorder automatically detects the type of cameras connected (we recommend TVI cameras, see accessories). Supports Very high recording resolution up to 5MP. Just mount a standard 3.5" or 2,5" SATA HDD (see accessories) and select your recording preferences. Then you will have a professional and reliable CCTV recording solution which will send alarm push-messages to your smartphone when a (motion detection) alarm is triggered.

This hard disk recorder has all the basic functions needed for home surveillance. It is also perfect for small businesses looking for a simple and price attractive surveilance solution.

Features:

Support AHD / CVI / TVI 2.0/TVI 3.0 / IP / Analog Camera Input
Up to HD 5MP and IP 5MP Resolution Recording
Support Human detection
Support HD and VGA Video Output
Support Max. 16CH HD or 16CH IP Camera Input
Support 2 SATA up to 16TB capacity

Specifications:

System:
- Main Processor: MC6650
- Operating System: Embedded LINUX
Video:
- Supported signal types: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Input signal capacity:
  - Normal Analog mode: 16 x (TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
  - Analog+Network mode: 2 x Analog(5MP) +14 x network (max. 8MP), 4 x Analog(5MP) + 12 x network(max. 8MP), 6 x Analog(5MP) +10 x network(max. 8MP), 8 x Analog(5MP) + 8 x network(max. 8MP), 10 x Analog(5MP) + 6 x network(max. 8MP), 12 x Analog(5MP) + 4 x network(max. 8MP), 14 x Analog(5MP) + 2 x network(max. 8MP)
  - Network: 16 x 8MP/5MP/4MP/3MP/1080P/960P/720P (Total incoming bandwidth ?80M)
- Input connectors: 16CH BNC
- Output: 1 x HDMI, 1 x VGA, 1 x CVBS
Audio:
- Input: 6 channel RCA (support AOC)
- Two-way Audio: No
- Output: 1 channel RCA
Alarm:
- Sensor Input: 4
- Output: 1
- Motion Detection: 16 channel
- Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
- Email Alarm: Send Image to The Designated E-mail
AI function:
- Human Detection: Yes
PTZ:
- Interface: RS485
- Protocol: Pelco-D, Pelco-P
- Baud Rate: 110~921600
- Address: 0~255
Display:
- VGA resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HD output resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
- Display Split: 1/4/8/9/16
- Privacy Masking: 3 rectangular zones (each camera)
- OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording:
- Video Compression: H.265/H.265+/H.264/H.264+
- Audio Compression: G.711u / G.711a / AAC
- Resolution: 5MP_Lite (1296×1952), 4MP_Lite (1280×1440), 3MP_Lite (1024×1536),1080N (960×1080), 720P (1280×720), 960H (P:960×576/N:960×480)
- Video Quality: Lowest/Low/Ordinary/Good/Better/Best
- Record Rate:
  - Analog PAL: 5MP_Lite (1296×1944 4*8fps), 4MP_Lite (1280×1440 4*15fps) ,3MP_Lite (1024×1536 4*18fps), 1080N (960x1080 4*18fps), 720P (1280×720 4*20fps), 960H (960×480 4*25fps)
  - Pure IP (H.265) PAL: 5MP@8×25fps ,4MP@9x25fps, 3MP@9×25fps, 1080P@9×25fps, 960P@9×25fps, 720P@9×25fps,D1@9×25fps
- Record Mode: Manual\Timer\Motion Detection
Playback & Backup:
- Decode Capability: 4CH 1080P@30fps
- Sync Playback:
  - Pure Analog: 16CH 960H@25fps, 16CH 720P@15fps, 16CH 1080N@15fps, 16CH 5M_LITE@6fps, 16CH 4M_LITE@8fps, 16CH 3M_LITE@10fps
  - Mixture mode: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
  - Pure Network: 4CH D1@25fps, 4CH 1080P@25fps, 1CH 8MP@30fps
- Remote Playback: 4 channel ( 1 channel
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
- Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
- Smart Phone Playback: 4 Channel
- Backup Mode: USB Device (with fomat FAT 32 ) / Network / FTP
Network:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET,EASY_PLANET
- Web Browser: IE8-11, Google Chrome, Firefox
- CMS Software: Support Windows 7/ 8/ 10 / 11
- Extra Stream: CIF/D1(1~30fps)
- Smart Phone: iPhone, iPad, Android, Android pad
Hard Disk Driver:
- Interface Type: 2 SATA Interface
- Capacity: 1 x SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB, see accessories)
General:
- Language: English, Simplified Chinese,Traditional Chinese, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
- UTC Control: Yes
- USB Interface: 2 x USB 2.0
- Power supply: 12VDC / 4A (adapter included)
- Operating temperature: -10...55°C
- Operating humidity; 10...90%
- Dimensions (W×D×H): 310 x 295 x 46mm
- Weight: 4 kg (without HDD)
