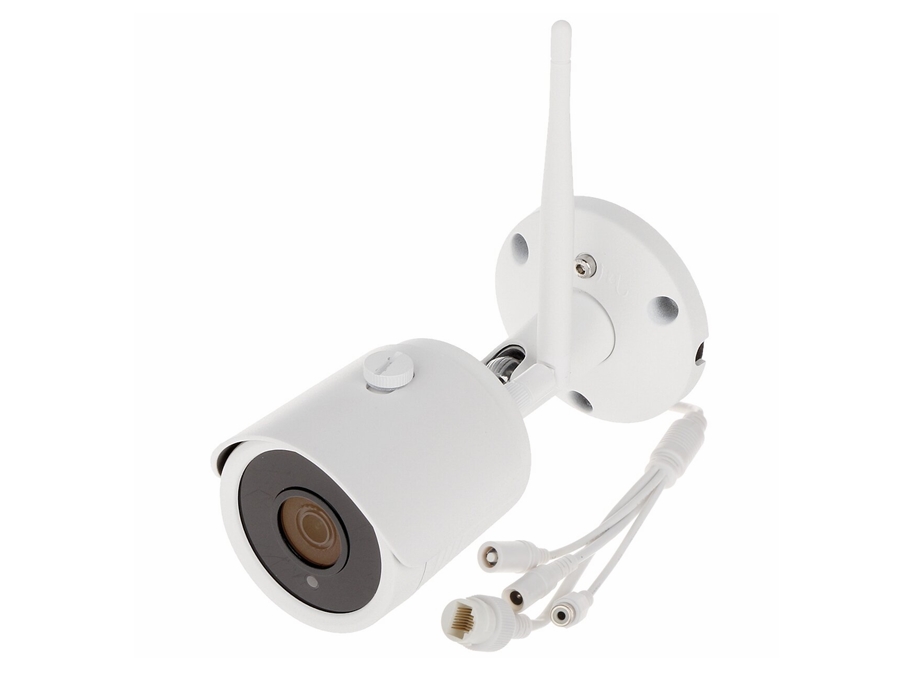

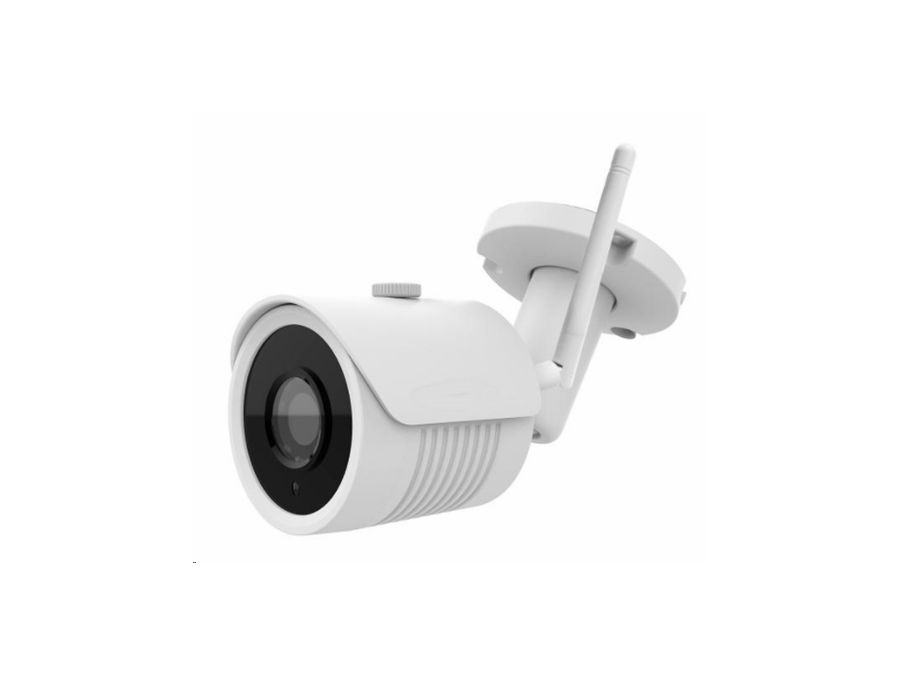

WiFi IP projektilkamera - 5MP, SD port, 25m IR (IP67)

WiFi IP projektilkamera - 5MP, SD port, 25m IR (IP67)

Varenr: H24269

EAN: 5705412242691

5MP udendørs fast Wifi IP projektilkamera med 25m IR natlys. Du kan tilgå den direkte trådløst via WiFi, og/eller du kan forbinde den til en digital videooptager (se tilbehør) trådløst via WiFi eller via netværkskabel.

Egenskaber:

1/2,5" CMOS sensor med høj opløsning
H.265/H.264 komprimeringsmetode
3,6mm fast objektiv
Med SD-kortport (maks. 256GB)
Maks. IR afstand 25m
IP67 udendørs metalhus

Tekniske detaljer:

Kamera:
- Billedsensor: 1/2,5 "CMOS i høj opløsning
- Opløsning: 5MP
- Effektive pixels: 2608 (H) x 1952 (V)
- Videokomprimering: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
- TV -system: PAL/NTSC
- Elektronisk lukkertid Auto: 1/25-1/10000 sek.
- Min. belysning: 0,01 Lux
- Signal/støjforhold: > 52dB
- Scanningssystem: Progressivt
- Videooutput: Netværk
- Resetknap: Nej
Linse:
- Fokuslængde: 3,6 mm/F2,0
- Fokuskontrol: Fast
- Objektivtype: fast
- Nattesyn:
  - Infrarød LED: 42µx 2 stk.
  - Infrarød afstand: 25m
  - IR -status: Auto
  - IR tændt: Auto
- Netværk:
  - Ethernet: RJ-45 (10/100Base-T)
  - Protokol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
  - ONVIF-understøttelse: ONVIF 2.4 (profil S)
  - P2P: Ja, understøtt QR -kode
  - Videoforsinkelse: 0,3 sek. (inden for Lan)
  - Main Stream 1 : 2592x1944 ved 20fps, 2560x1920 ved 20fps
  - Main Stream 2: 2560x1440 ved 30fps
  - Main Stream 3: 1920x1080 ved 30fps
  - Substream: 1720x480 ved 20fps, 720x480 ved 30fps
  - IE Brower sppport: IE8-11, Google Chrome (lavere end Ver44), Firefox (lavere end Ver53), Mac Safari (lavere end version 12)
  - Smartphone understøttelse: iPhone, iPad, Android, Android Pad
- Trådløs:
  - Antenne gain: 3dbi
  - Wi-Fi Wi-Fi (IEEE802.11b/g/n), 2,4 GHz
  - WIFI Range Ingen forhindringer 300m Maks.
  - Kamerafunktioner:
    - Dag / nat: Farve / S/H (IR-CUT)
    - Billedkonfiguration Mætning/lysstyrke/kontrast/skarphed, spejl, 3D NR, hvidbalance, FLK (flimmerstyring)
    - Korridor mønster: Understøttet
    - Defog Mode: Understøttet
    - BLC: Understøttet
    - Bevægelsesregistrering: Understøttet
    - Privacy Masking: 3 rektangulær zone
    - Optagelsestilstand: NVR/VMS/Web/SD -kort
    - OSD sprog: engelsk, bulgarsk, polsk, arabisk, tysk, russisk, fransk, koreansk, portugisisk, japansk, tyrkisk, spansk, hebraisk, italiensk, nederlandsk, tjekkisk, vietnamesisk
  - Grænseflade:
    - Lyd: Valgfri lydindgang (RCA -interface)
    - SD-kort port: understøtter 256GB Micro SD
  - Generelt:
    - Hus: Metal, IP67
    - Anti-cut beslag: Anti-Cut 3-Axis
    - IR-cut filter: Ja
    - Operationel temperatur: -20...60°C RH95% Maks.
    - Opbevaringstemperatur: -20...60°C RH95% Maks.
    - Strømforsyning: 12Vdc ±10%, 700mA (medfølger ikke - se tilbehør)
    - Størrelse: 157 (B) x 70 (H) x 66 (D) mm
    - Vægt: 650g

5MP Outdoor Fixed Bullet Wifi IP camera with 25m IR illimination.

Features:

1/2.5"High-resolution CMOS Sensor
H.265/H.264 Compression Method
3.6mm Fixed Lens
With SD Card Slot (Max. 256GB)
Max. IR distance 25m
IP67 Outdoor Metal Case

Specifications:

Camera:
- Image Sensor: 1/2.5" High-resolution CMOS
- Resolution: 5MP
- Effective Pixels: 2608(H) x 1952(V)
- Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
- TV System: PAL/NTSC
- Electronic Shutter Time Auto: 1/25-1/10000 sec.
- Minimum illumination: 0.01Lux
- S/N Ratio: >52dB
- Scanning System: Progressive
- Video Output: Network
- Reset Button: Nej
LENS Type:
- Focus Length: 3,6mm/F2.0
- Focus Control: Fixed
- Lens Type: Fixed
- Night Vision:
  - Infrared LED: 42µx 2 pcs.
  - Infrared Distance: 25m
  - IR Status: Auto
  - IR Power On: Auto
- Network:
  - Ethernet: RJ-45 (10/100Base-T)
  - Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
  - ONVIF Support: ONVIF 2.4 (Profile S)
  - P2P: Yes, Support QR Code
  - Video Delay: 0.3 sec. (within the Lan)
  - Main Stream 1: 2592x1944 @ 20fps, 2560x1920 @ 20fps
  - Main Stream 2: 2560x1440 @ 30fps
  - Main Stream 3: 1920x1080 @ 30fps
  - Sub Stream: 1720x480 @ 20fps, 720x480 @ 30fps
  - IE Brower sppport: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
  - Smart Phone support: iPhone, iPad, Android, Android Pad
- Wireless:
  - Antenna gain: 3dbi
  - Wi-FiWi-Fi(IEEE802.11b/g/n),2.4Ghz
  - WIFI RangeNo obstacles 300m Max.
  - Camera features:
    - Day / Night: Color / B&W (IR-CUT )
    - Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK (Flicker Control)
    - Corridor Pattern: Supported
    - Defog Mode: Supported
    - BLC: Supported
    - Motion Detection: Supported
    - Privacy Masking: 3 Rectangular Zone
    - Recording Mode: NVR/VMS/Web/SD Card
    - OSD languages: English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese
  - Interface:
    - Audio: Optional Audio in(RCA interface)
    - SD Card Slot: support 256G Micro SD
  - General:
    - Housing: Metal, IP67
    - Anti-cut Bracket: Anti-Cut 3-Axis
    - IR Cut Filter: YES
    - Operating temperature: -20...60°C RH95% Max.
    - Storage Temperature: -20...60°C RH95% Max.
    - Power Source: 12Vdc ± 10%, 700mA
    - Dimensions: 157(W) x 70(H) x 66(D)mm
    - Weight: 650g
