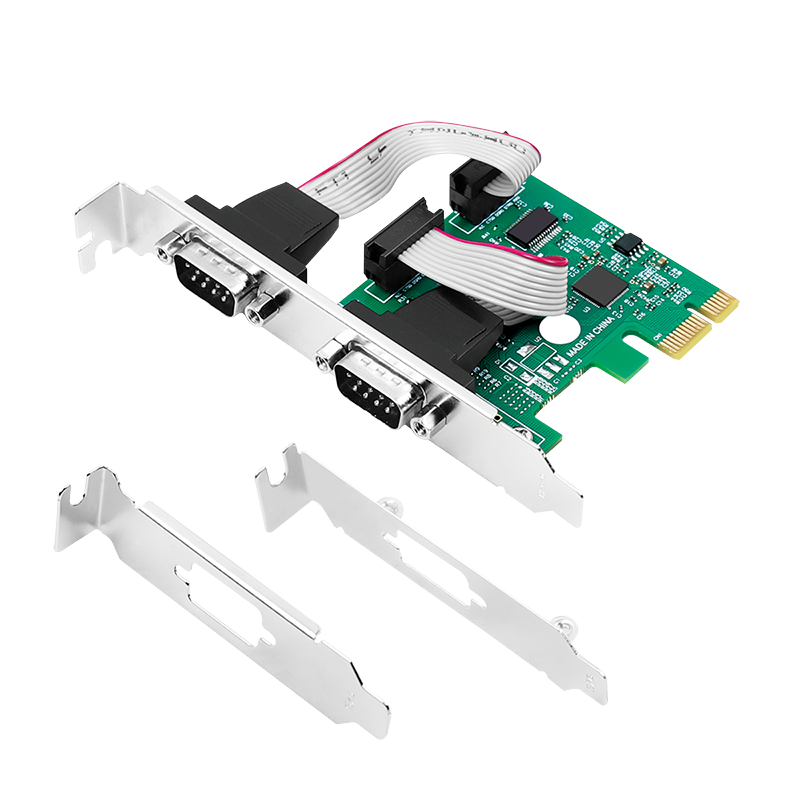

PCI-express kort, 2 x seriel port, RS232
Varenr:
H24907
EAN:
4260113563915
LogiLink PCI Express Card udvider din PC med to serielle porte for at forbinde RS232-kompatible enheder. Den er monteret i en ledig PCI-slot på din PC og identificeret af nuværende operativsystemer på grund af plug-and-play (PnP) teknologien. Den automatiske IRQ-adressering forhindrer adressekonflikter. De interne og eksterne forbindelser er standardiserede og fungerer i enhver pc.
Tekniske detaljer:
- PCI Express-kort 2x seriel
- 2x RS232 9-benet ekstern
- 16C450/16C550 UART-specifikation henvist til
- Chipsæt: MOSCHIP MCS9922
- Maksimal hastighed: 1 MByte/s
- Understøtter 16 byte sende/modtage
- Understøtter Win 7 / 8 (32/64-bit) / 10 (32/64-bit) / 11 (64-bit) og Linux
LogiLink PCI Express Card extends your PC by two serial ports to connect RS232 compatible devices. It is mounted into an available PCI slot of your PC and identified by current operating systems because of the plug-and-play (PnP) technology. The automatic IRQ addressing prevents address conflicts. The internal and external connections are standardized and work in any PC.
Specifications:
- PCI Express Card 2x Serial
- 2x RS232 9-pin external
- 16C450/16C550 UART specification referred
- Chipset: MOSCHIP MCS9922
- Maximum Speed: 1 MByte/s
- Supports 16 byte transmit receive
- Supports Win 7 / 8 (32/64-bit) / 10 (32/64-bit) / 11 (64-bit) and Linux
