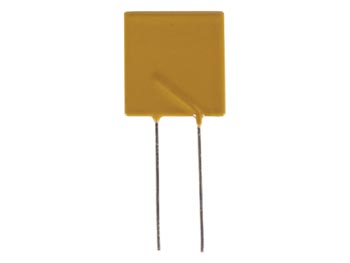

PTC genskabende sikring - 10-20,4A / 16VDC
Varenr:
H24916
EAN:
5705412249164
The PTC resistor resets automatically and protects your circuit permanently.
Egenskaber:
- Low hold current
- Solid state
- Radial leads
Tekniske detaljer:
- Hold current Ih (A): 10
- Maximum current Imax (A): 20,4
- Maks. operating voltage Vo-max (Vdc): 16
- Resistance tolerance:
- Rmin: 2mOhm
- Rmaks. (1 hour after tripping): 9mOhm
- Størrelse:
- A (maks.): 17,5mm
- B (maks.): 28mm
- C (typ.): 10,2mm
- D (min.): 7,6mm
- E (maks.): 3,6mm
