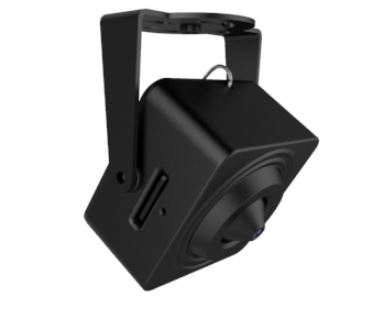

WIFI IP miniaturekamera - 4MP, SD port (IP20)
Varenr:
H25084
EAN:
5705412250849
2MP miniature WIFI IP-kamera med 3,7mm pinhole-objektiv og micro SD-kort port (maks. 128 GB). WiFi (maks. 100m) er valgfrit.Optaqger direkte på SD kort (se tilbehør) eller overfører via WIFI til NVR, VMS eller Web.
Funktioner:
- 1/2,8" SONY Starvis bagbelyst CMOS-sensor
- H.264/H.264+/H.265/H.265+ Kompressionsmetode
- 2MP pinhole linse 3,7mm
- Understøtter 2-vejs lyd, alarmindgang 3,3V~20V
- Med SD-kortplads (maks. 128 GB)
- WiFi (maks. 100m)
Tekniske detaljer:
- Kamera:
- Billedsensor: 1/2,8" SONY Starvis bagbelyst CMOS-sensor
- Opløsning: 2MP 1080P
- Effektive pixel: 1945 (H)*1097 (V)
- Kompression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
- TV-system: PAL/NTSC
- Elektronisk lukkertid: Auto: PAL 1/25-1/10000Sek; NTSC 1/25-1/10000 sek
- Minimun belysning: 0,005Lux
- S/N-forhold: >52dB
- Scanningssystem: Progressivt
- Videoudgang: Netværk
- Objektiv:
- Fokuslængde: Board Lens 3,7 mm/F2,8
- Fokuskontrol: Fast
- Objektivtype: Fast
- Pixels: 2 MP
- Netværk:
- Ethernet: RJ-45 (10/100Base-T)
- Protokol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
- ONVIF: Understøtter ONVIF 2.4 (Profil S)
- P2P: JA, understøtter QR-kode
- POE: Valgfri (ekstern POE men uden lyd- og alarmfunktioner), understøtter IEEE 802.3af
- Videoforsinkelse: 0,3S (inden for LAN)
- Main Stream: 1920*1080@30fps
- Main Stream: 1280*720@25fps
- Understream: 720*480@30fps
- Tri Stream: 352*288@30fps
- IE-browser: IE8-11, Google Chrome (lavere end Ver44), Firefox (lavere end Ver53), Mac Safari (lavere end version 12) Smart PhoneiPhone, iPad, Android, Android Pad
- Trådløs:
- Antenne: 2,5dbi
- WIFI: IEEE802.11b/g/n, 2,4Ghz
- WIFI Rækkevidde: Ingen forhindringer 100m Maks.
- Kamera:
- Dag/nat: Farve
- Billedkonfiguration: Mætning/lysstyrke/kontrast/skarphed, spejl, 3D NR, hvidbalance, FLK (flimmerkontrol)
- Understøttelse af korridormønster: Ja
- Defog Mode support: Ja
- BLC support: Ja
- WDRDWDR: 50dB
- Understøttelse af bevægelsesdetektion: Ja
- Privatlivsmaskering: 3 rektangulære zoner
- Optagetilstand: NVR/VMS/Web/SD-kort
- OSD sprog: engelsk, forenklet kinesisk, traditionel kinesisk, , bulgarsk, polsk, arabisk, tysk, russisk, fransk, koreansk, portugisisk, japansk, tyrkisk, spansk, hebraisk, italiensk, nederlandsk, tjekkisk, vietnamesisk
- Interface:
- Audio: 2-vejs lyd (3,5mm JACK lydgrænseflade)
- Alarm: 1 kanals input (3,3V~20V)
- Understøttelse af SD-kort: Micro SD (maks. 128GB)
- Generel:
- Hus: Metal
- Anti-cut beslag: Ja
- IR Cut Filter: Nej
- Operationel temperatur: -20...60°C RH95% Maks.
- Strømkilde: DC12V±10%, 350mA
- Størrelse (B x H x D): 36x36x27mm
- Vægt: 300g
2MP Miniature WIFI IP camera with 3.7mm Pinhole Lens and SD card slot (Max 128GB). WiFi (Max. 100m) is optional.
Features:
- 1/2.8"SONY Starvis Back-illuminated CMOS Sensor
- H.264/H.264+/H.265/H.265+ Compression Method
- 2MP Taper Pinhole Lens 3.7mm
- Support 2-Way Audio, Alarm Input 3.3V~20V
- With SD Card Slot (Max. 128GB)
- WiFi (Max. 100m)
Specifications:
- Camera:
- Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
- Resolution: 2MP 1080P
- Effective Pixels: 1945(H)*1097(V)
- Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG
- TV System: PAL/NTSC
- Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
- Minimun Illumination: 0.005Lux
- S/N Ratio: ?52dB
- Scanning System: Progressive
- Video Output: Network
- LENS Type:
- Focus Length: Board Lens 3.7mm/F2.8
- Focus Control: Fixed
- Lens Type: Fixed
- Pixels: 2Mp
- Network:
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
- ONVIF: Support ONVIF 2.4(Profile S)
- P2P: YES, Support QR Code
- POE: Optional (External POE But Without Audio and Alarm Functions), Support IEEE 802.3af
- Video Delay: 0.3S (Within the Lan)
- Main Stream 1: 1920*1080@30fps
- Main Stream 2: 1280*720@25fps
- Sub Stream 1: 720*480@30fps
- Tri Stream: 352*288@30fps
- IE Brower: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12) Smart PhoneiPhone, iPad, Android, Android Pad
- Wireless:
- Antena: 2.5dbi
- WIFI: IEEE802.11b/g/n, 2.4Ghz
- WIFI Range: No obstacles 100m Max.
- Camera:
- Day/Night: Color
- Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)
- Corridor Pattern support: Yes
- Defog Mode support: Yes
- BLC support: Yes
- WDRDWDR: 50dB
- Motion Detection support: Yes
- Privacy Masking: 3 Rectangular Zone
- Recording Mode: NVR/VMS/Web/SD Card
- Language: English, Chinese Simplified, Chinese Traditional, , Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese
- Interface:
- Audio: 2-way audio (3.5mm JACK audio interface)
- Alarm: 1 channel Input (3.3V~20V)
- SD Card Slot support: 128G Micro SD
- General:
- Housing: Metal
- Anti-cut Bracket: YES
- IR Cut Filter: NO
- Operating Temperature: -20...60°C RH95% Max.
- Power Source: DC12V±10%, 350mA
- Dimensions (W x H x D): 36 x 36 x27mm
- Weight: 300g
