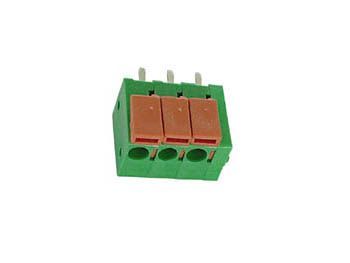

Skrueløs terminal - 3pol, 5mm benafstand (6 ben), Grøn

Modular skrueløs klemmeterminal til printmontage. Sammensat af 3 x 1pol terminalblok og 1 x endestykke. Kan forlænges...

Egenskaber:

• These screwless terminals are suitable for both solid og flexible conductors
• A spring made of stainless strip steel guarantees permanent og safe contact
• Operation by pushing the lever with a screwdriver (this lever is fully integrated in the body)
• Equipped with a cover for easy manual adjustment
• Blocks are stackable

Tekniske detaljer:

• Antal kontakter: 2
• Screwless push-button type
• Benafstand: 5mm
• Insulated body lever, cover: glass-filled polyester (UL94VO)
• AWG: 20 - 18 (0.6 til 1,5mm²)
• Kontakt: brass (CuZn)
• Surface of solder pins: tin-plated
• Strøm rating: maks. 15A, 300Vac / way
• Insulation withstand spænding: 2000Vac min.
• Isolationsmodstand: 500Mohm (at 5000Vdc)
• Operationel temperatur: -33°C til +120°C
• Soldering temperature: +250°C, 5 sek. maks.
• Farve: grøn with orange

Også kendt som: Terminal Blocks > Screwless Terminal Blocks, Quick-clamp Type, Pitch = 5mm
