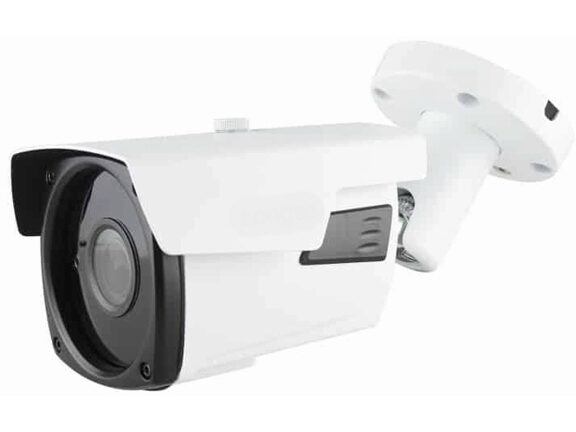

AHD/TVI projektilkamera - 2/5MP, 60m IR , Starlight (IP67)

Varenr: H25965

EAN: 5705412259651

Har du brug for et robust CCTV-kamera med optisk zoom, for at fange alle detaljerne? Så er dette 4-i-1 (AHD / CVI / TVI og CVBS) HD-overvågningskamera løsningen for dig. Den er udstyret med et kraftigt indbygget 60m S/H IR nattesyn, der aktiveres når mørkt. I skumringen kan den fortsat vise farvebilleder takket være Starlight funktionen.

Er den tilsluttet en af vores nyere hybridoptagere (se tilbehør), så får du det fulde udbytte af kameraets høje 5MP opløsning, men den fungerer også med ældre 2MP og analoge harddiskoptagere.

Egenskaber:

1/2,8" SONY Starvis bagbelyst CMOS-sensor
4-i-1 kamera, der understøtter AHD/CVI/TVI/CVBS videostandarder
2,8-12mm varifokalt objektiv til op til 5x optisk zoom
Kraftfuldt indbygget IR-lys til op til 60m nattesyn
Vandtæt (IP67) kabinet til udendørs installation
OSD & UTC support
Med anti-cut 3-akset beslag

Tekniske detaljer:

Kamera:
- Billedsensor: 1/2,8" SONY Starvis bagbelyst CMOS
- Billedopløsning: 5M: 2592x1944p, 4M: 2560x1440p, 2M: 1920x1080p
- TV-system: PAL/NTSC
- Elektronisk lukker: Auto
- Minimal belysning:
  - Farve: 0,001 lux@F1.6, AGC ON
  - S/H: 0 lux med IR
- Scanningssystem: Progressiv scanning
Linse:
- Fokuslængde: 2,8-12mm
- Fokuskontrol: Manuel
- Objektivtype: Varifokal
Nattesyn:
- IR Cut Filter: Ja
- Infrarøde lysdioder: 42µ x 6 stk.
- Infrarød afstand: 60m
- IR Status: AGC Auto Control
Kameraets funktioner:
- Stjernelys
  funktion: Ja
- IR dag/nat funktion: Ja
- OSD-menu: Ja
- WDR: 120dB
- UTC: Ja
- Støjreduktion: AI-DNR
- Hvidbalance: AUTO / MANUEL
- Gain Control: AUTO
Generel:
- Hus: Metal, IP67
- Beslag: Ja
- Operationel temperatur: -10...60°C (RH 95% maks.)
- Opbevaringstemperatur: -20...60°C (RH 95% maks.)
- Strømforsyning: 12Vdc±10%, 750mA (medfølger ikke - se tilbehør)
- Mål (B x H x D): 211x92x90mm
- Vægt: 1400g

Do you need a robust CCTV camera with optical zoom, in order to capture all the details? Then this 4-in-1 (AHD / CVI / TVI and CVBS) HD surveillance camera is the solution for you. It is equipped with a powerful built-in 60m IR night vision activated when dusk.

If it is connected to one of our modern hybrid recorders (see accessories), then you will get the full benefit of the camera's high 5MP resolution, but it also works with older 2MP and analog hard disk recorders.

Features:

1/2.8"SONY Starvis Back-illuminated CMOS sensor
4-in-1 camera which supports AHD/CVI/TVI/CVBS video standards
2.8-12mm Varifocal Lens for up to 5x optical zoom
Powerful build-in IR light for up to 60m night vision
Waterproof (IP67) housing for outdoor installation
OSD & UTC Support
With anti-cut 3-Axis bracket

Specifications:

Camera:
- Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS
- Image Resolution: 5M: 2592x1944p, 4M: 2560x1440p, 2M: 1920x1080p
- TV System: PAL/NTSC
- Electronic Shutter: Auto
- Minimun Illumination:
  - Color : 0.001 lux@F1.6, AGC ON
  - B/W : 0 lux with IR
- Scanning System: Progressive Scan
Lens:
- Focus Length: 2.8-12mm
- Focus Control: Manual
- Lens Type: Varifocal
Night Vision:
- IR Cut Filter: Yes
- Infrared LEDs: 42µ x 6 pcs.
- Infrared Distance: 60m
- IR Status: AGC Auto Control
Camera features:
- Starlight
  function: Yes
- IR day/night function: Yes
- OSD Menu: Yes
- WDR: 120dB
- UTC: Yes
- Noise Reduction: AI-DNR
- White Balance: AUTO / MANUAL
- Gain Control: AUTO
General:
- Housing: Metal, IP67
- Bracket: Yes
- Operating temperature: -10...60°C (RH 95% max.)
- Storage temperature: -20...60°C (RH 95% max.)
- Power supply: 12Vdc±10%, 750mA (not included - see accessories)
- Dimensions (W x H x D): 211 x 92 x 90mm
- Weight: 1400g
