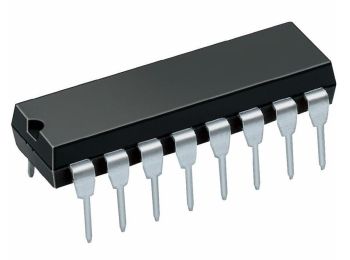

74LS283 4 bit full adder (DIP16)
Varenr:
H27339
EAN:
5705412273398
LOGIK, 4BIT BINÆR FULDADDER, 16DIP.
Tekniske detaljer:
- Forsyningsspænding: 4,75...5,25V
- Indgangsspænding: 0,8...2V
- Antal bits: 4bit
- Udbredelsesforsinkelse: 16 ns
- Logic Case Style: DIP
- Antal pins: 16
- Operationel temperatur: 0...70°C
- Indgangsspænding: 800mV til 2V
- Logisk funktionsnummer: 74283
- Logisk IC-basenummer: 74283
- Logisk IC-familie: LS
- Logisk IC-funktion: 4-bit binære komplette addere med hurtig transport
- Logik type: Binær fuld adder med hurtig transport
- Montering: Printhul
Også kendt som: SN74LS283N, T74LS283B1.
LOGIC, 4BIT BINARY FULL ADDER, 16DIP.
Specifications:
- Supply Voltage: 4.75...5.25V
- Input Voltage: 0.8...2V
- No. of Bits: 4bit
- Propagation Delay: 16ns
- Logic Case Style: DIP
- No. of Pins: 16
- Operating Temperature: 0...70°C
- Input Voltage: 800mV to 2V
- Logic Function Number: 74283
- Logic IC Base Number: 74283
- Logic IC Family: LS
- Logic IC Function: 4-Bit Binary Full Adders with Fast Carry
- Logic Type: Binary Full Adder with Fast Carry
- Mounting: THT
