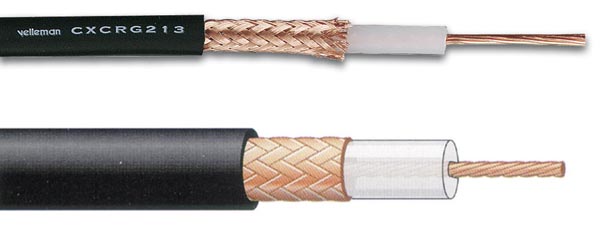

COAX kabel - RG213/U, 50ohm, Ø10,2mm, Sort (metervare)
Varenr:
H28216
EAN:
5705412282161
Tekniske detaljer:
- Inderleder (materiale / antal x Ømm): CU / 7 x 0,72
- Isolering (materiale / Ømm): solid PE / 6,45
- Skærmning (materiale / antal x Ømm / dækning): Ren CU / 168 x 0,15 / 91%
- Omslag (materiale / Ømm farve): PVC II / 10,2mm Sort
- Elektriske data (impedans): 50 ± 5 ohm
- Dæmpning (dB / 100m):
- 100MHz: 7,0
- 200MHz: 11,0
- 400MHz: 16,0
- 800MHz: 25,0
- 1000MHz: 28,0
- Salgsenhed: Hel rulle m. 100m
Forkortelser:
- AL = Aluminium, CU = Kobber, CU SN = Fortinnet kobber, CU AG = Sølvbelagt kobber, CCS = Kobberbelagt stål
- LAP = aluminium / polyester film, PEE = polyethylene, PVC = polyvinylchloride, PVC II = polyvinylchoride (non-migrating)
