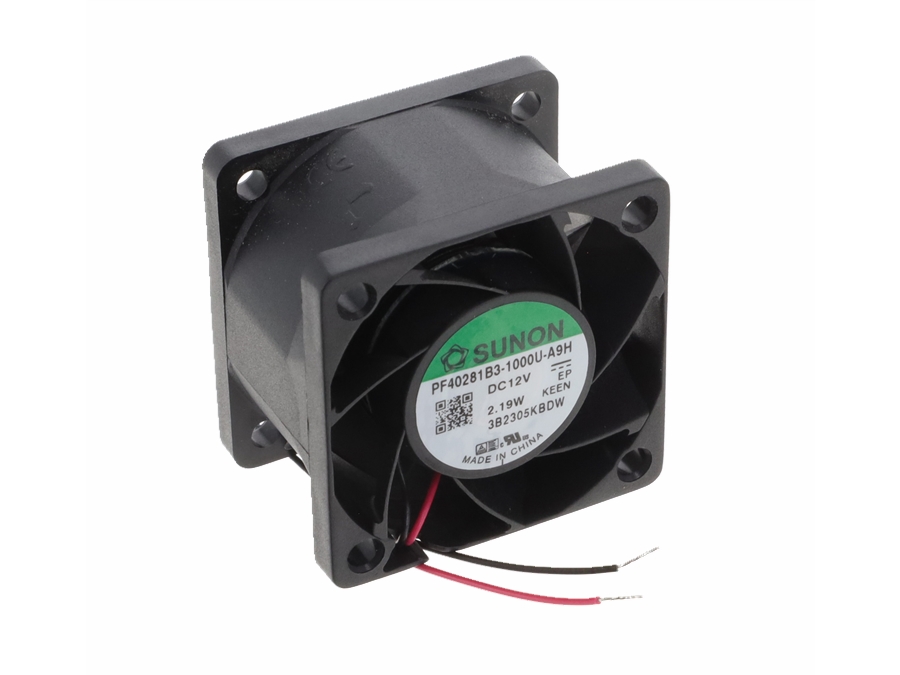

DC blæser - 40x40x28mm 12Vdc 587mA 7W, kugleleje, 2-ledn.
Varenr:
H29323
EAN:
5410329365196
Tekniske detaljer:
- Producent (varemærke): SUNON
- Ventilatortype: DC
- Type blæser: Aksial
- Forsyningsspænding: 12Vdc
- Driftsspænding: 6,5...13,2Vdc

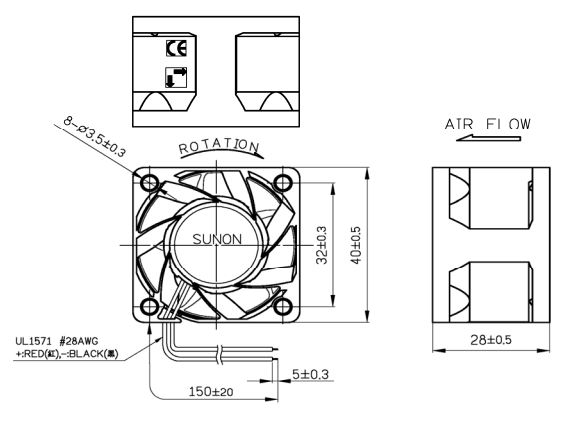

- Ventilatormål: 40x40x28mm
- Strømforbrug: 7,05W
- Strømstyrke: 587mA
- Ventilatoreffektivitet: 42.31m3/h
- Støjniveau: 63,7dBA
- Type leje: Kugle
- Rotationshastighed: 17600 (±10%) rpm
- Min. isolationsmodstand: 10 MOhm
- Løbehjulsmateriale: Termoplast
- Kapslingsmateriale: Termoplast
- Isoleringsklasse: A
- Leads: Lead x2
- Operationel temperatur: -10...70°C
- Brandklasse: UL94V-0
- Yderligere funktioner: Autogenstart
- Ventilatormotor: Børsteløs DC
- Statisk tryk: 2
- Ledningsstørrelse: 28AWG
- Bruttovægt: 41,6g
Specifications:
- Manufacturer: SUNON
- Type of fan: DC
- Kind of fan: Axial
- Supply voltage: 12V DC
- Operating voltage: 6.5...13.2V DC
- Fan dimensions: 40x40x28mm
- Power consumption: 7.05W
- Current rating: 587mA
- Fan efficiency: 42.31m3/h
- Noise level: 63.7dBA
- Kind of Bearing: Ball
- Rotational rate/speed: 17600 (±10%)rpm
- Min. insulation resistance: 10 MOhm
- Impeller material: Thermoplastic
- Enclosure material: Thermoplastic
- Insulation class: A
- Leads: Lead x2
- Operating temperature: -10...70°C
- Flammability rating: UL94V-0
- Additional functions: Autorestart
- Fan motor: Brushless DC
- Static pressure: 2
- Wire size: 28AWG
- Gross weight: 41.6 g
