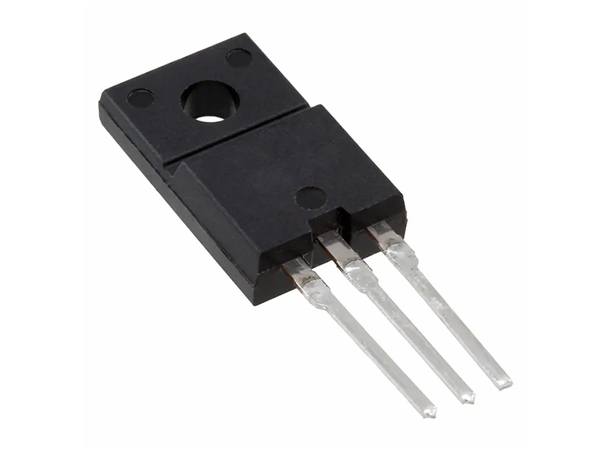

STP14NF12FP Transistor - N-MOSFET 120V 14A (TO220FP)
Varenr:
H29726
EAN:
5705412297264
Tekniske detaljer:
- Producent (varemærke): STMicroelectronics
- Produktkategori: MOSFET
- Monteringsmåde: Gennemgående hul
- Hus: TO-220FP-3
- Transistorpolaritet: N-kanal
- Antal kanaler: 1 kanal
- Drain-Source Breakdown Spænding (Vds): 120 V
- Kontinuerlig drænstrøm (Id): 8,5 A
- Drænkildemodstand (Rds On): 180 mOhms
- Gate-Source Spænding (Vgs): - 20 V, + 20 V
- Gate-Source Threshold Voltage (Vgs th): 2 V
- Portladning (Qg): 15,5 nC
- Operationel temperatur: -55...175°C
- Effekttab (Pd): 25 W
- Kanaltilstand: Forbedring
- Serie: STP14NF12FP
- Konfiguration: Enkelt
- Efterårstid: 8 ns
- Stigningstid: 25 ns
- Højde: 9,3mm
- Længde: 10,4mm
Specifications:
- Manufacturer: STMicroelectronics
- Product Category: MOSFET
- Mounting Style: Through Hole
- Package/Case: TO-220FP-3
- Transistor Polarity: N-Channel
- Number of Channels: 1 Channel
- Drain-Source Breakdown Voltage (Vds): 120 V
- Continuous Drain Current (Id): 8.5 A
- Drain-Source Resistance (Rds On): 180 mOhms
- Gate-Source Voltage (Vgs): - 20 V, + 20 V
- Gate-Source Threshold Voltage (Vgs th): 2 V
- Gate Charge (Qg): 15.5 nC
- Operating Temperature: -55...175°C
- Power Dissipation (Pd): 25 W
- Channel Mode: Enhancement
- Series: STP14NF12FP
- Configuration: Single
- Fall Time: 8 ns
- Rise Time: 25 ns
- Height: 9.3 mm
- Length: 10.4 mm
